SKF 6317/C3VL0241

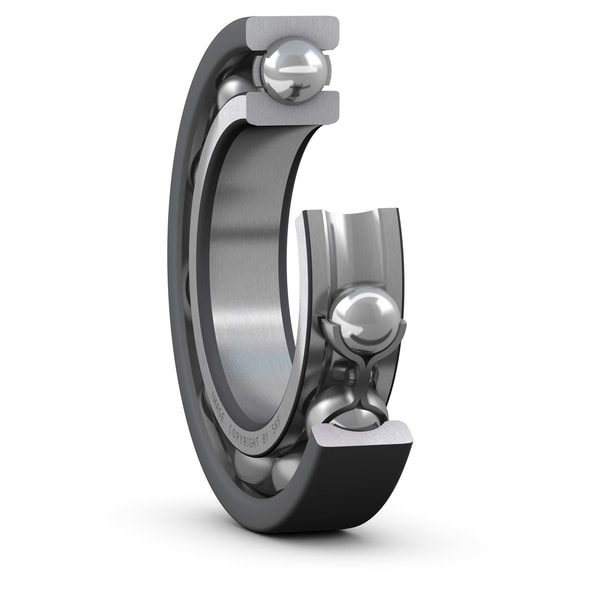

INSOCOAT® deep groove ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
85.0 mm
Bore diameter
D
180.0 mm
Outside diameter
B
41.0 mm
Width
d1
114.55 mm
Shoulder diameter inner ring
D2
158.0 mm
Recess diameter outer ring shoulder
r1,2
3.0 mm
Chamfer dimension
mass
4.07 kg
Product net weight
