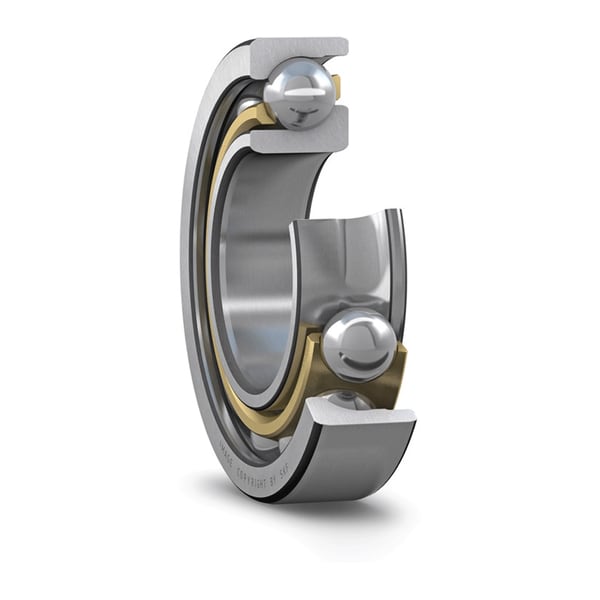

SKF 718/530 AMB
Single row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
530.0 mm
Bore diameter
D
650.0 mm
Outside diameter
B
56.0 mm
Width
d1
570.0 mm
Shoulder diameter of inner ring (large side face)
D1
612.55 mm
Shoulder diameter of outer ring (large side face)
a
199.0 mm
Distance side face to pressure point
r1,2
3.0 mm
Chamfer dimension
r3,4
1.1 mm
Chamfer dimension
