SKF 719/530 ACM

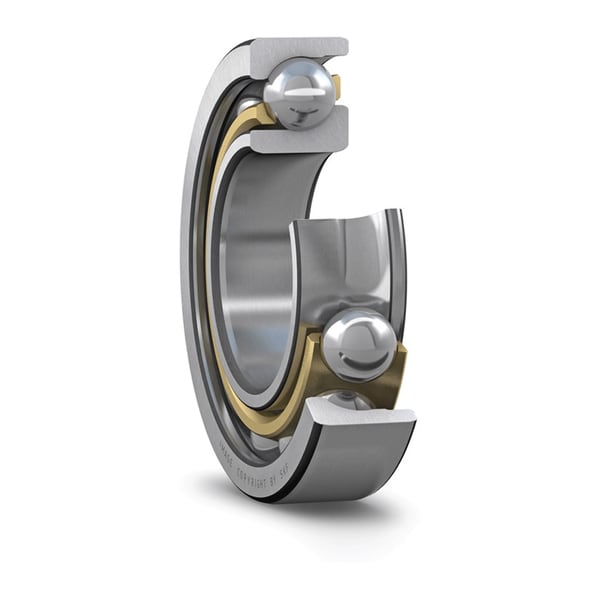

Single row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
530.0 mm
Bore diameter
D
710.0 mm
Outside diameter
B
82.0 mm
Width
d1
590.3 mm
Shoulder diameter of inner ring (large side face)
D1
653.45 mm
Shoulder diameter of outer ring (large side face)
a
186.0 mm
Distance side face to pressure point
r1,2
5.0 mm
Chamfer dimension
r3,4
2.0 mm
Chamfer dimension
