SKF 719/560 AMB

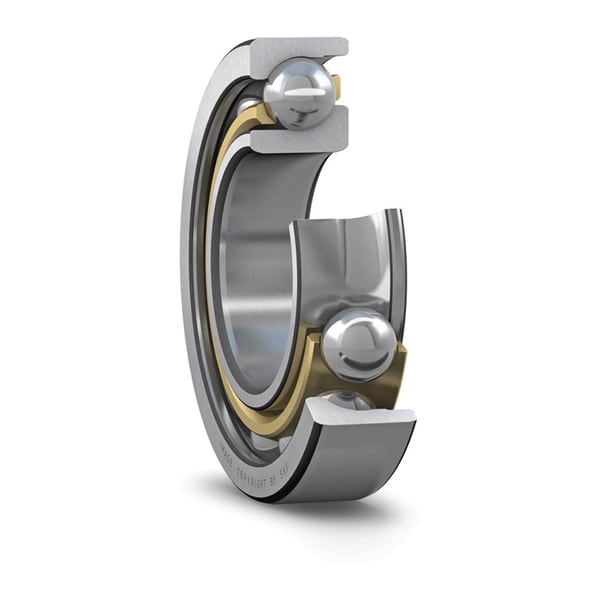

Single row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
560.0 mm
Bore diameter
D
750.0 mm
Outside diameter
B
85.0 mm
Width
d1
622.6 mm
Shoulder diameter of inner ring (large side face)
D1
690.6 mm
Shoulder diameter of outer ring (large side face)
a
232.0 mm
Distance side face to pressure point
r1,2
5.0 mm
Chamfer dimension
r3,4
2.0 mm
Chamfer dimension
