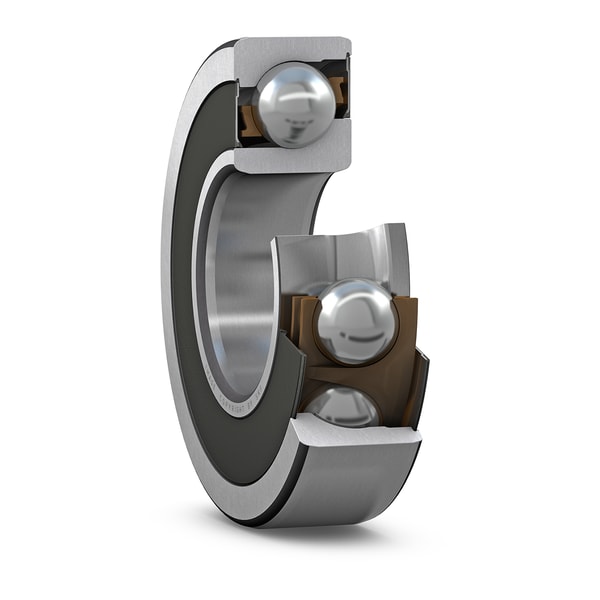

SKF 7307 BE-2RZP
Single row angular contact ball bearing with 40° contact angle and non-contact seals on both sides
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
35.0 mm
Bore diameter
D
80.0 mm
Outside diameter
B
21.0 mm
Width
d1
52.5 mm
Shoulder diameter of inner ring (large side face)
d2
43.62 mm
Shoulder diameter of inner ring (small side face)
D2
65.05 mm
Recess diameter of outer ring (large side face)
D5
74.25 mm
Recess diameter of outer ring (small side face)
a
35.0 mm
Distance side face to pressure point
r1,2
1.5 mm
Chamfer dimension
r3,4
1.0 mm
Chamfer dimension
mass
0.449 kg
Product net weight
