SKF 7417 BACBMC

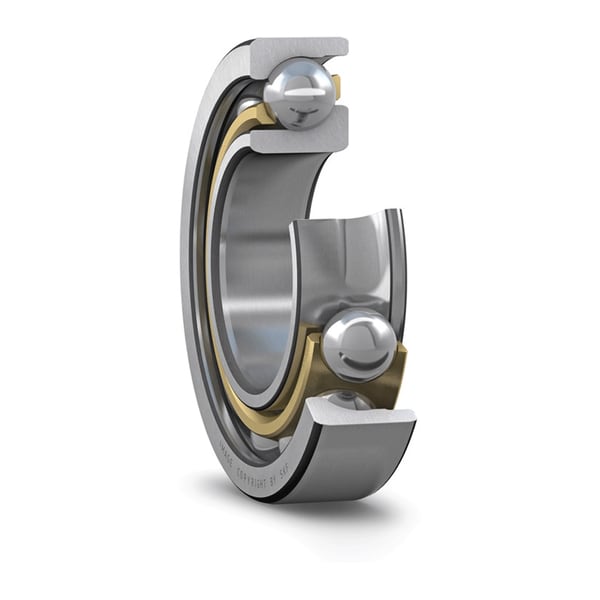

Single row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
85.0 mm
Bore diameter
D
210.0 mm
Outside diameter
B
52.0 mm
Width
d1
127.631 mm
Shoulder diameter of inner ring (large side face)
D1
166.95 mm
Shoulder diameter of outer ring (large side face)
a
88.0 mm
Distance side face to pressure point
r1,2
4.0 mm
Chamfer dimension
r3,4
4.0 mm
Chamfer dimension
mass
9.28 kg
Product net weight
