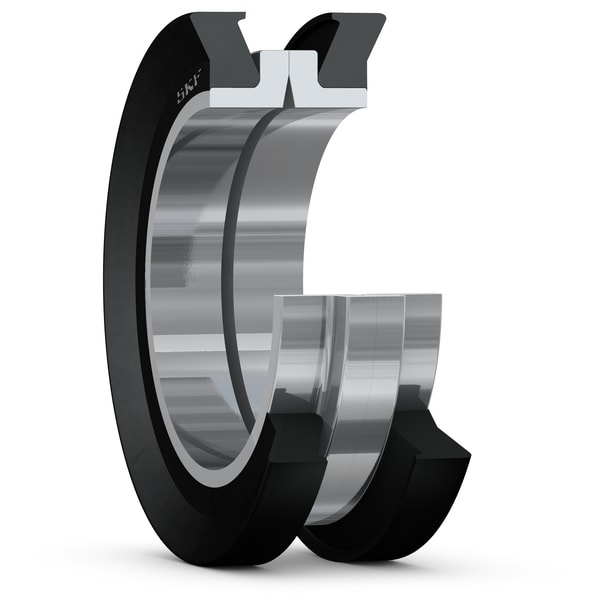

SKF 74310
Metal face seal
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
188.93 mm
Shaft diameter
D
238.76 mm
Housing bore diameter
B1
42.06 mm
Operating width
B
20.14 mm
Housing bore depth
d3
191.52 mm
Seal inside diameter
b
34.14 mm
Width of metal sealing rings
r
1.85 mm
Radius
mass
1.08 kg
Product net weight
