SKF BA 5

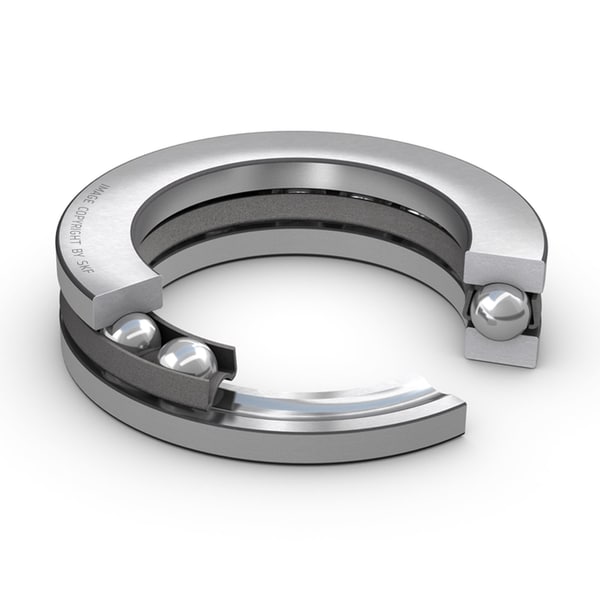

Single direction thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
5.0 mm
Bore diameter
D
12.0 mm
Outside diameter
H
4.0 mm
Height
d1
11.8 mm
Outside diameter shaft washer
D1
5.2 mm
Inner diameter housing washer
r1,2
0.15 mm
Chamfer dimension washer
mass
0.0026 kg
Product net weight
