SKF QJ 208 MA

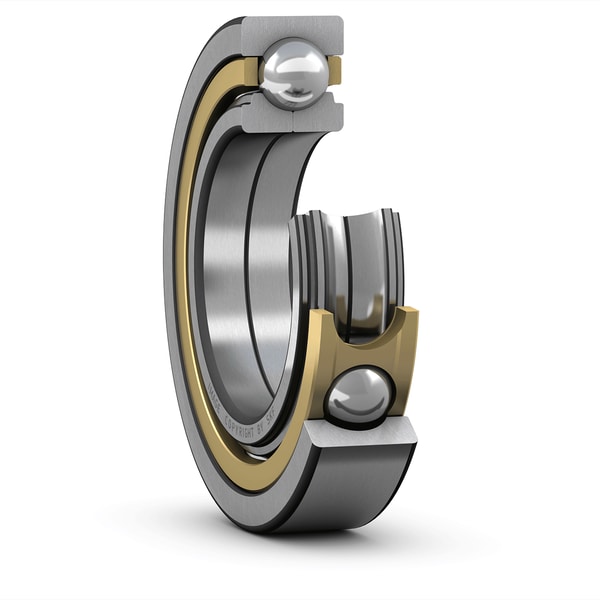

Four-point contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
40.0 mm
Bore diameter
D
80.0 mm
Outside diameter
B
18.0 mm
Width
d1
49.5 mm
Shoulder diameter inner ring
D1
66.0 mm
Shoulder diameter outer ring/ inner diameter housing washer
a
42.0 mm
Distance pressure point(s)
r1,2
1.1 mm
Chamfer dimension inner ring
mass
0.455 kg
Product net weight
