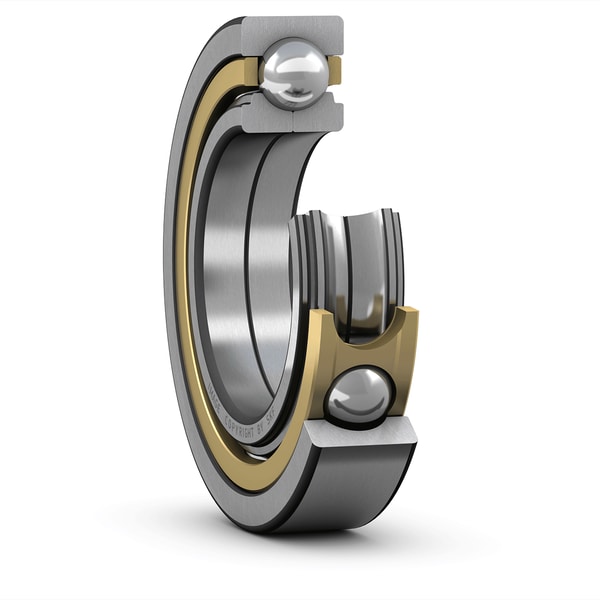

SKF QJ 212 MA
Four-point contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
60.0 mm
Bore diameter
D
110.0 mm
Outside diameter
B
22.0 mm
Width
d1
72.0 mm
Shoulder diameter inner ring
D1
93.0 mm
Shoulder diameter outer ring/ inner diameter housing washer
a
60.0 mm
Distance pressure point(s)
r1,2
1.5 mm
Chamfer dimension inner ring
mass
0.965 kg
Product net weight
