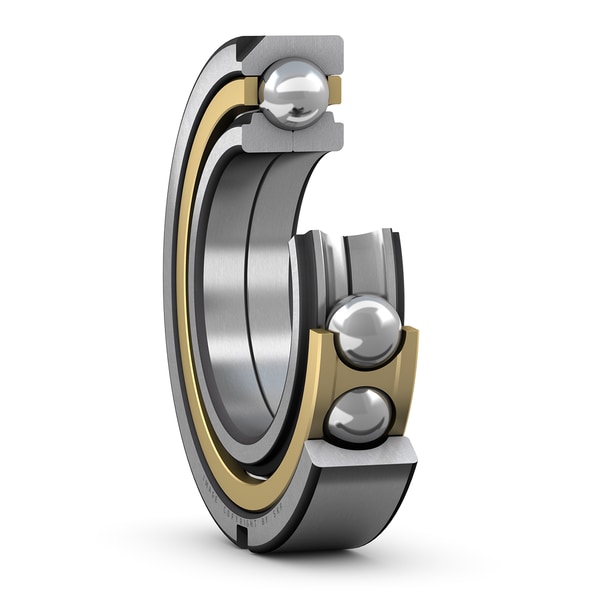

SKF QJ 232 N2MA
Four-point contact ball bearing with locating slots
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
160.0 mm
Bore diameter
D
290.0 mm
Outside diameter
B
48.0 mm
Width
d1
204.0 mm
Shoulder diameter inner ring
D1
243.0 mm
Shoulder diameter outer ring/ inner diameter housing washer
a
158.0 mm
Distance pressure point(s)
h
12.7 mm
Locating slot depth outer ring
b
10.5 mm
Locating slot width outer ring
r0
2.0 mm
Corner radius locating slot
r1,2
3.0 mm
Chamfer dimension inner ring
mass
14.7 kg
Product net weight
