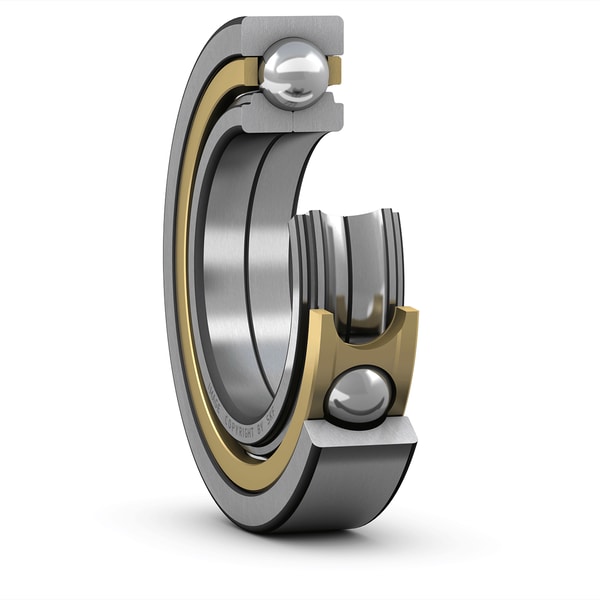

SKF QJ 307 MA
Four-point contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
35.0 mm
Bore diameter
D
80.0 mm
Outside diameter
B
21.0 mm
Width
d1
46.2 mm
Shoulder diameter inner ring
D1
64.3 mm
Shoulder diameter outer ring/ inner diameter housing washer
a
40.0 mm
Distance pressure point(s)
r1,2
1.5 mm
Chamfer dimension inner ring
mass
0.555 kg
Product net weight
