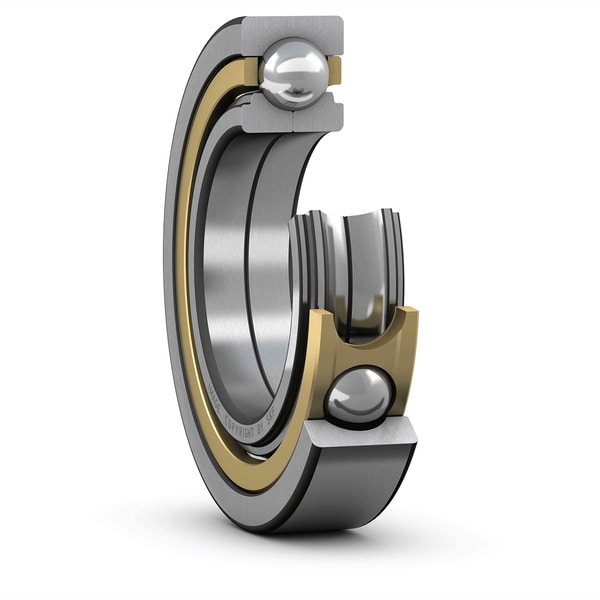

SKF QJ 313 MA
Four-point contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
65.0 mm
Bore diameter
D
140.0 mm
Outside diameter
B
33.0 mm
Width
d1
82.5 mm
Shoulder diameter inner ring
D1
115.0 mm
Shoulder diameter outer ring/ inner diameter housing washer
a
72.0 mm
Distance pressure point(s)
r1,2
2.1 mm
Chamfer dimension inner ring
mass
2.58 kg
Product net weight
