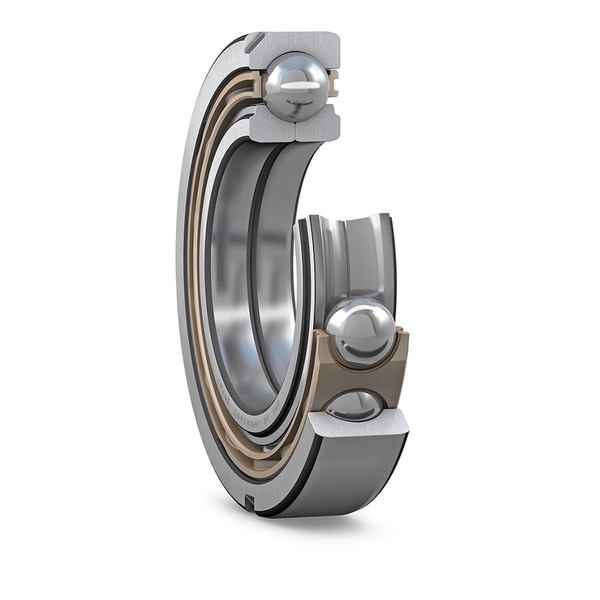

SKF QJ 319 N2PHAS
Four-point contact ball bearing with locating slots
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
95.0 mm
Bore diameter
D
200.0 mm
Outside diameter
B
45.0 mm
Width
d1
131.0 mm
Shoulder diameter inner ring
D1
165.0 mm
Shoulder diameter outer ring/ inner diameter housing washer
a
103.0 mm
Distance pressure point(s)
h
11.7 mm
Locating slot depth outer ring
b
10.5 mm
Locating slot width outer ring
r0
2.0 mm
Corner radius locating slot
r1,2
3.0 mm
Chamfer dimension inner ring
mass
6.39 kg
Product net weight
