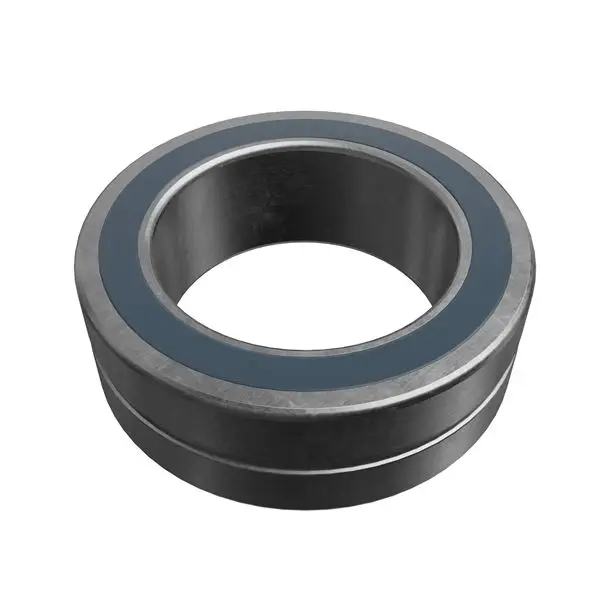

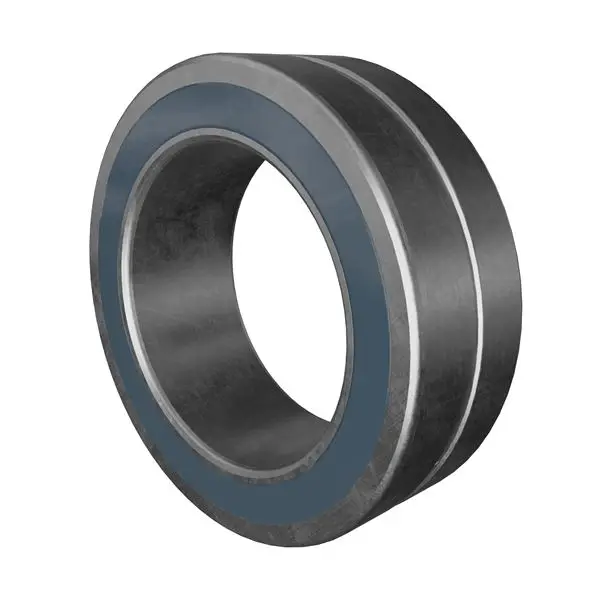

Timken 23024EJW33VSL609
Spherical Roller Bearings - Solid Lube
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Unit
Metric
d - Bore
120 mm
Lubrication Type
Industrial Grade Solid Lube
Cage Type
EJ
Cage Material
Steel
Factors
Maximum Operating Speed
570 rpm
e - ISO Factor1
0.22
Y0 - ISO Factor2
2.95
Y1 - ISO Factor3
3.02
Y2 - ISO Factor4
4.49
Cg - Geometry Factor5
0.0735
Dimensions
D - Outer Diameter
180 mm
B' - Inner Ring Width
46 mm
B - Outer Ring Width
46 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius6
2 mm
r - Outer Ring "To Clear" Radius7
2 mm
da - Inner Ring Backing Diameter
134.000 mm
Da - Outer Ring Backing Diameter
167 mm
Basic Load Ratings
C0 - Static Radial Rating
574000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
408000 N
