Timken 2MM211WICRTULFS637

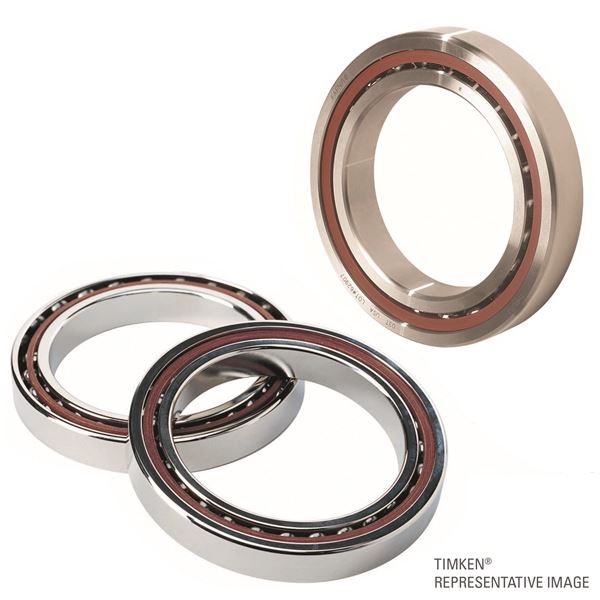

Fafnir® Spindle Angular Contact Ball Bearings (9300WI, 9100WI, 200WI, 300WI)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
2MM211WICRTULFS637
Specifications
Rows per Set
Triplex
Design Units
Metric
d - Bore
55 mm
Ball Type
STEEL
Cage Type
CR - Phenolic Outer Land Riding Cage
Precision Rating
ISO P4S (ABEC 7/9)
Manufacturing Part Number
2MM211WI TUL
World Part Number
7211C-T-P4S-TUL
Dimensions
D - Outer Diameter
100 mm
Bearing Width
21 mm
Total Width
63 mm
Contact Angle
15 º
Basic Load Ratings
C0 - Static Radial Rating (per row)
40000 N
Ce - Dynamic Radial Rating (per row)1
58700 N
C1 ISO - Dynamic Radial Rating (per row)
53400 N
Factors
Limiting Speed (Grease) (per row)
14500 rpm
Limiting Speed (Oil)
29000 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
1.5 mm
r - Outer Ring "To Clear" Radius3
1.5 mm
da - Inner Ring Backing Diameter
63.3 mm
Da - Outer Ring Backing Diameter
92.2 mm
