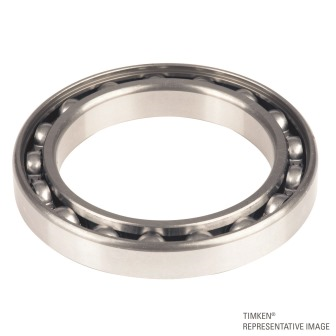

Timken 61813-C3
Thin Section Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Clearance
C3
Bore Size d
65 mm
Features
Open

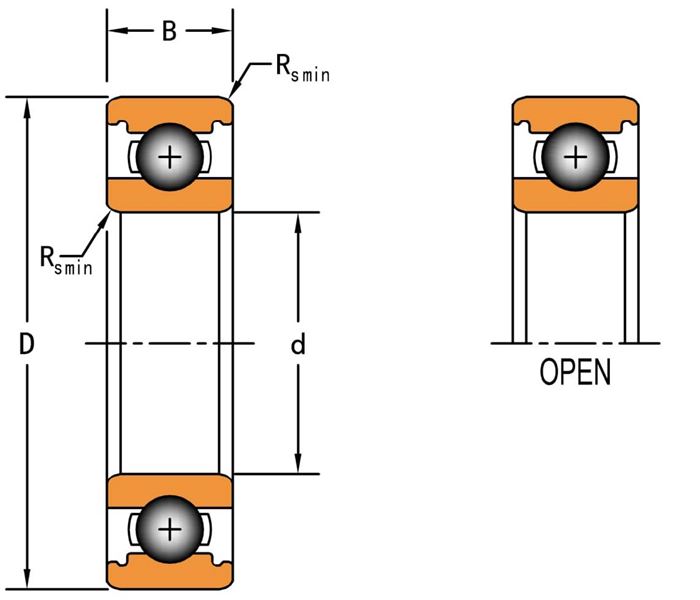

Dimensions
Outside Diameter D
85 mm
Outside Ring Width B
10 mm
Fillet Radius/Chamfer
0.6 mm
Basic Load Ratings
Cr - Dynamic Load Rating
11900 N
C0r - Static Load Rating
11500 N
Factors
Grease Reference Speed
7300 rpm
Grease Limiting Speed
7300 rpm
Oil Reference Speed
8600 rpm
