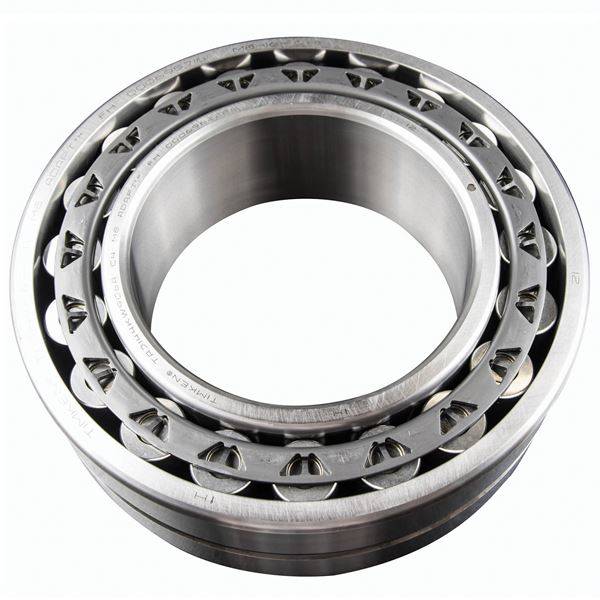

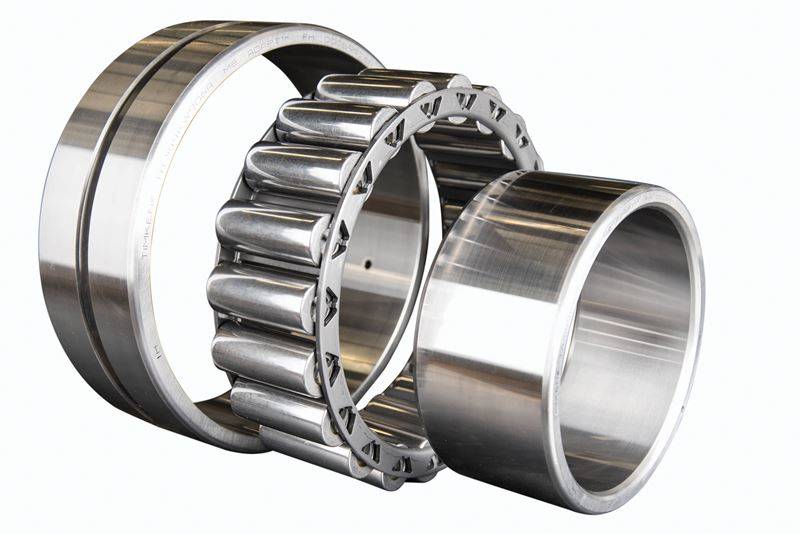

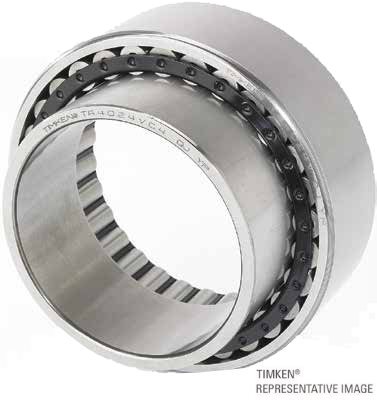

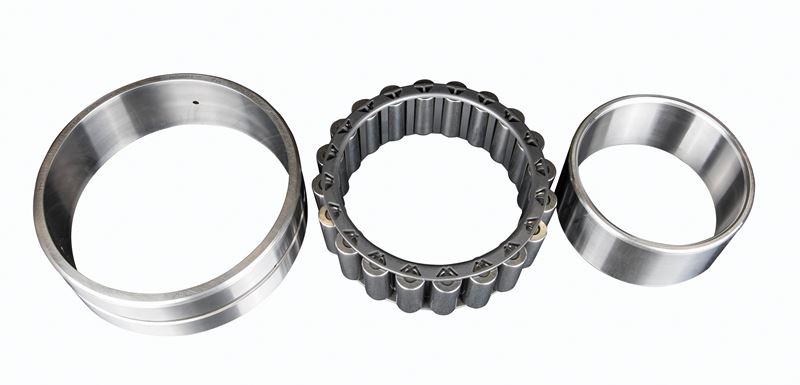

Timken TA3044W33C4
ADAPT Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
220 mm
Tapered Bore
N
Dimensions
D - Outer Diameter
340 mm
C - Inner Ring Width
90 mm
B - Outer Ring Width
90 mm
DUR - Diameter Under Roller
250.73 mm
F - Float
10.5 mm
Basic Load Ratings
C0 - Static Radial Rating
2000000 N
C - Dynamic Radial Rating1
1364000 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2.5 mm
r - Outer Ring "To Clear" Radius3
2.5 mm
da - Inner Ring Backing Diameter
245 mm
Da - Outer Ring Backing Diameter
316 mm
