FAG 16004-A-C3

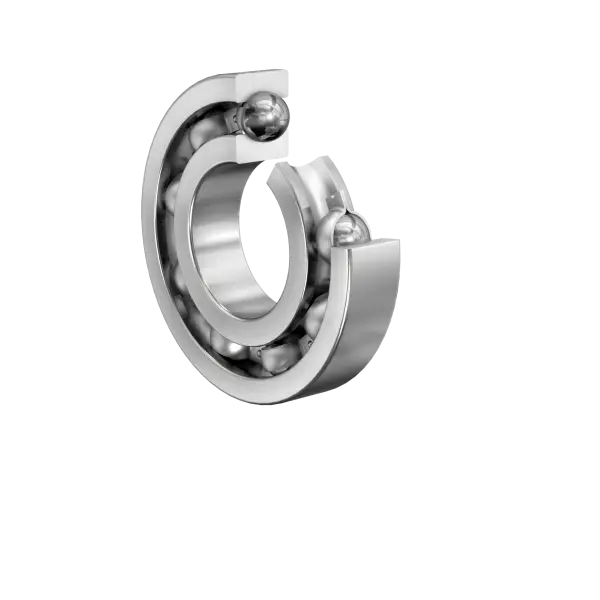

Deep groove ball bearing 160..-A, single row, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
42 mm
Outside diameter
B
8 mm
Width
Cr
7,910 N
Basic dynamic load rating, radial
C0r
4,480 N
Basic static load rating, radial
Cur
240 N
Fatigue load limit, radial
CG
26,000 1/min
Limiting speed
nϑr
13,800 1/min
Reference speed
≈m
0.048 kg
Weight
Mounting dimensions
da min
22 mm
Minimum diameter shaft shoulder
da min
40 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
