FAG 6344-M-J20AA-C3
Deep Groove Ball Bearings

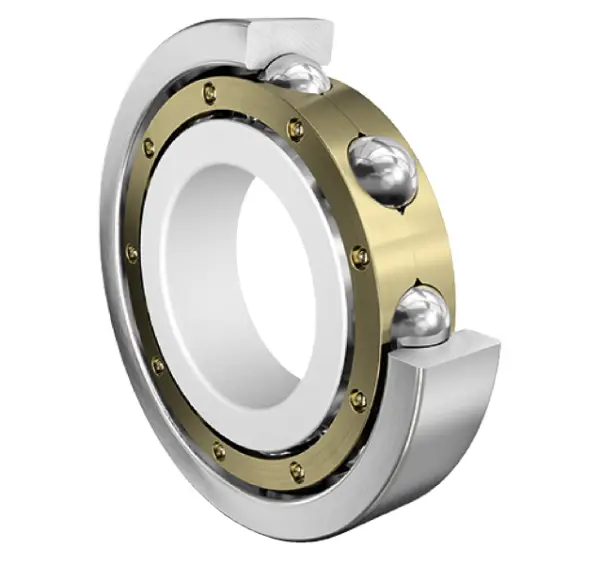

Deep groove ball bearing 63..-M-J20AA, single row, solid brass cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
220 mm
Bore diameter
D
460 mm
Outside diameter
B
88 mm
Width
Cr
440,000 N
Basic dynamic load rating, radial
C0r
560,000 N
Basic static load rating, radial
Cur
20,600 N
Fatigue load limit, radial
CG
2,460 1/min
Limiting speed
nϑr
1,960 1/min
Reference speed
≈m
72.8 kg
Weight
Mounting dimensions
da min
240 mm
Minimum diameter shaft shoulder
da min
440 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum fillet radius
