FAG 240/1120-B-MB
Spherical Roller Bearings
Spherical roller bearing 240..-B-MB, symmetric 3 ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

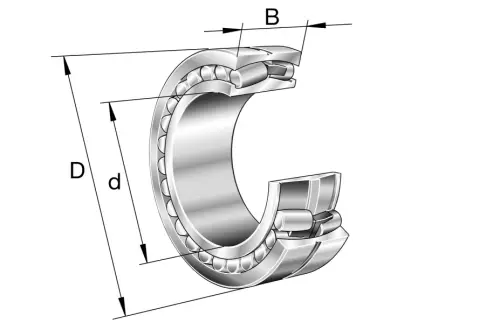

Main Dimensions & Performance Data
d
1,120 mm
Bore diameter
D
1,580 mm
Outside diameter
B
462 mm
Width
Cr
20,900,000 N
Basic dynamic load rating, radial
C0r
55,000,000 N
Basic static load rating, radial
Cur
3,300,000 N
Fatigue load limit, radial
CG
280 1/min
Limiting speed
nϑr
113 1/min
Reference speed
≈m
2,900 kg
Weight
Mounting dimensions
da min
1,154 mm
Minimum diameter shaft shoulder
Da max
1,546 mm
Maximum diameter of housing shoulder
ra max
8 mm
Maximum recess radius
