FAG 3217-B-2RSR-TVH
Angular Contact Ball Bearings
Angular contact ball bearing 32..-B-2RSR-TVH, double row, seals, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

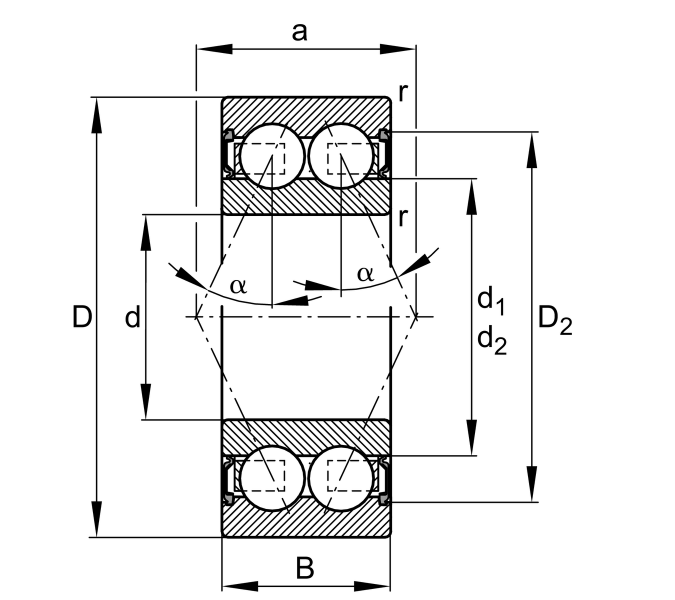

Main Dimensions & Performance Data
d
85 mm
Bore diameter
D
150 mm
Outside diameter
B
49.2 mm
Width
Cr
124,000 N
Basic dynamic load rating, radial
C0r
126,000 N
Basic static load rating, radial
Cur
6,100 N
Fatigue load limit, radial
nG
2,500 1/min
Limiting speed
≈m
3.05 kg
Weight

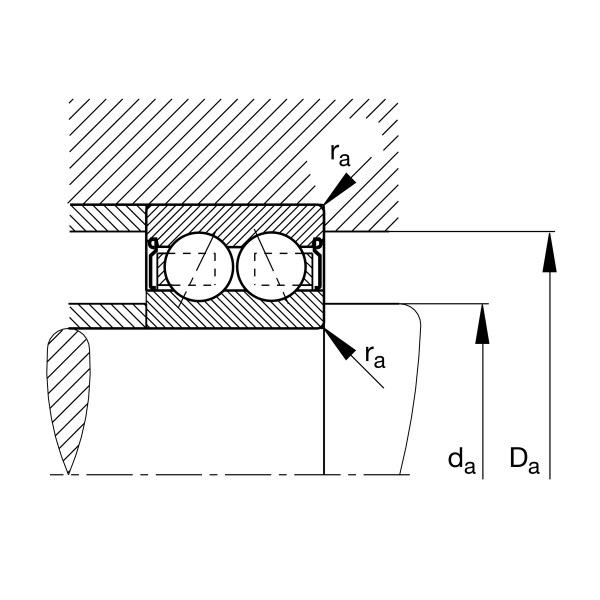

Mounting dimensions
da min
96 mm
Minimum diameter shaft shoulder
Da max
139 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum fillet radius
