FAG 4200-BB-TVH
Deep groove ball bearing 42..-BB-TVH, double row, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

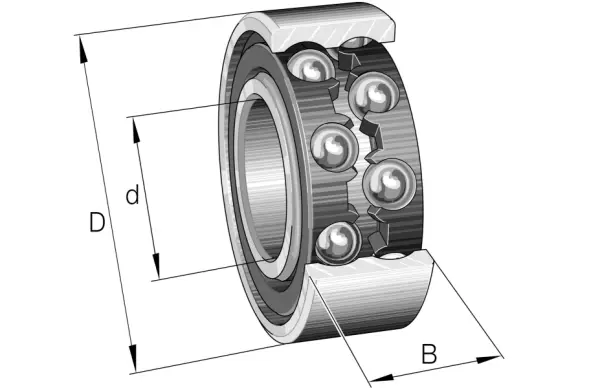

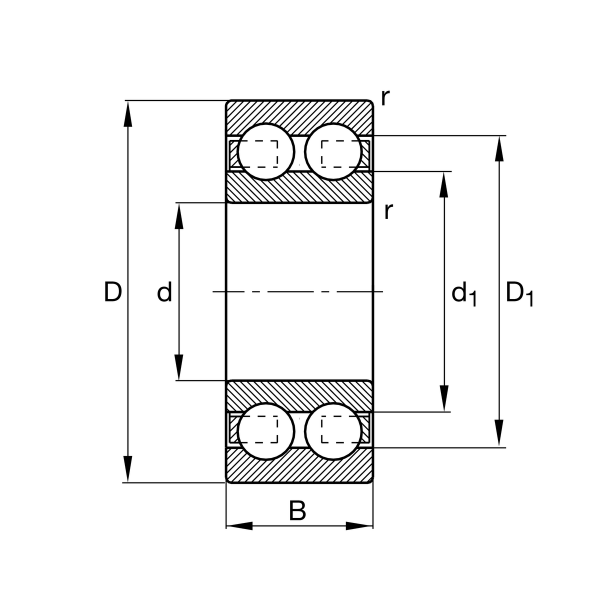

Main Dimensions & Performance Data
d
10 mm
Bore diameter
D
30 mm
Outside diameter
B
14 mm
Width
Cr
8,300 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
Cur
247 N
Fatigue load limit, radial
CG
21,800 1/min
Limiting speed
nϑr
21,600 1/min
Reference speed

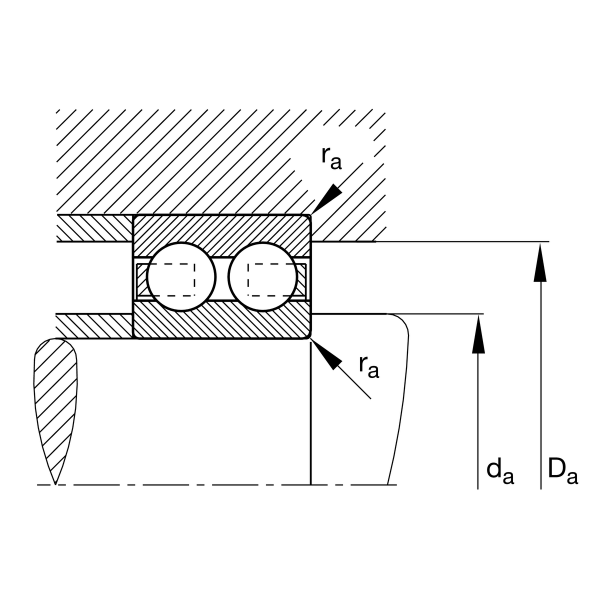

Mounting dimensions
da min
14.2 mm
Minimum diameter shaft shoulder
da min
25.8 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius
