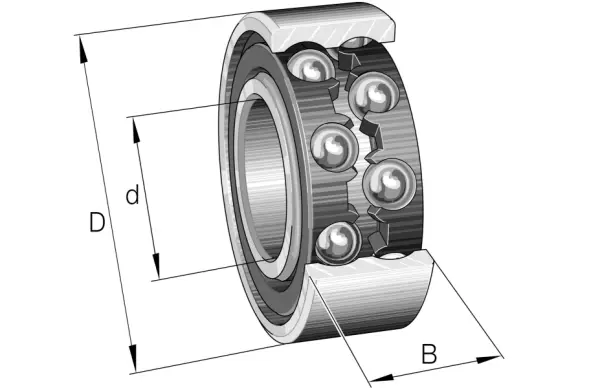

FAG 4203-BB-TVH
Deep groove ball bearing 42..-BB-TVH, double row, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

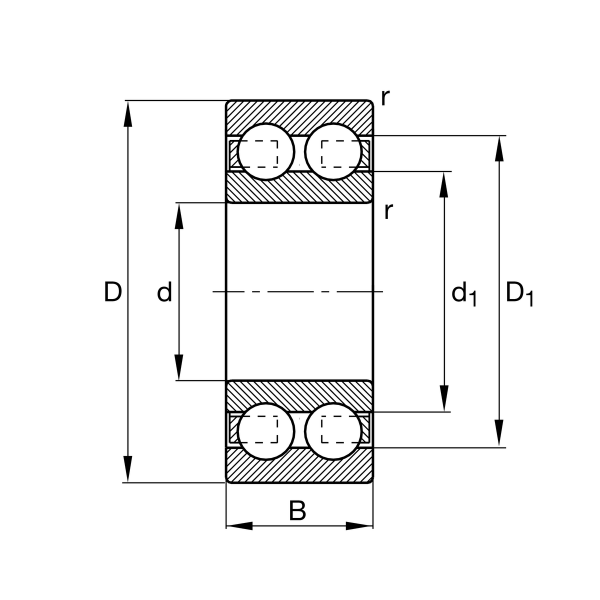

Main Dimensions & Performance Data
d
17 mm
Bore diameter
D
40 mm
Outside diameter
B
16 mm
Width
Cr
15,600 N
Basic dynamic load rating, radial
C0r
9,500 N
Basic static load rating, radial
Cur
495 N
Fatigue load limit, radial
CG
14,900 1/min
Limiting speed
nϑr
15,100 1/min
Reference speed

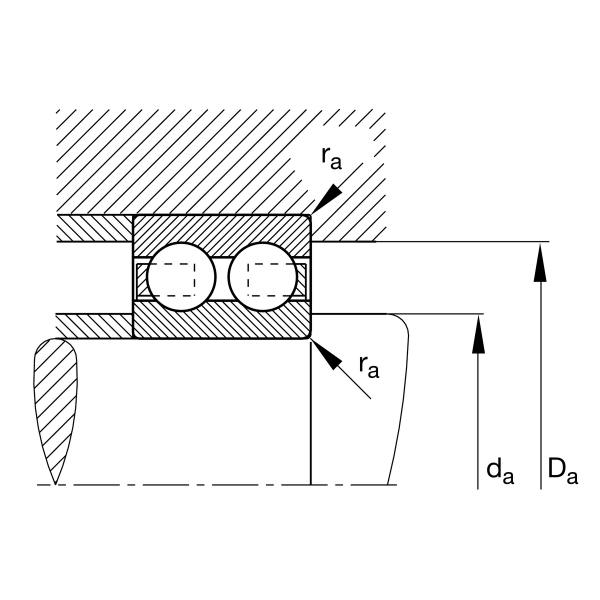

Mounting dimensions
da min
21.2 mm
Minimum diameter shaft shoulder
da min
35.8 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius
