FAG 4303-BB-TVH
Deep groove ball bearing 43..-BB-TVH, double row, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

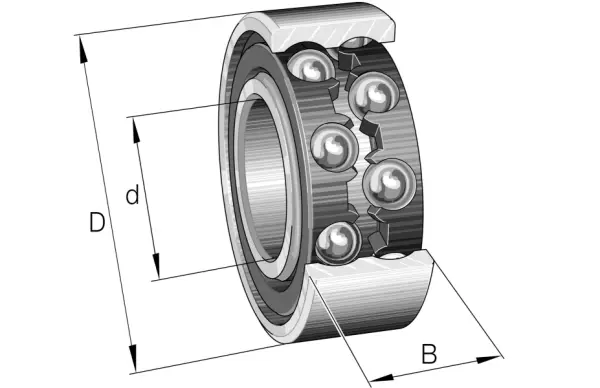

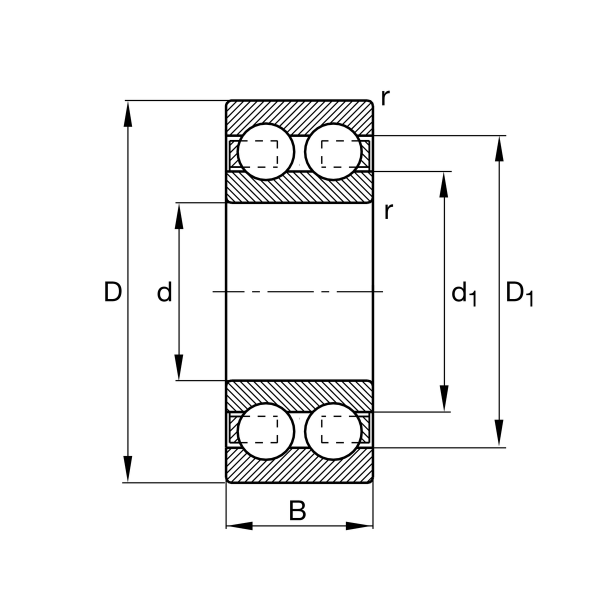

Main Dimensions & Performance Data
d
17 mm
Bore diameter
D
47 mm
Outside diameter
B
19 mm
Width
Cr
20,900 N
Basic dynamic load rating, radial
C0r
13,200 N
Basic static load rating, radial
Cur
690 N
Fatigue load limit, radial
CG
12,500 1/min
Limiting speed
nϑr
9,800 1/min
Reference speed
≈m
0.178 kg
Weight

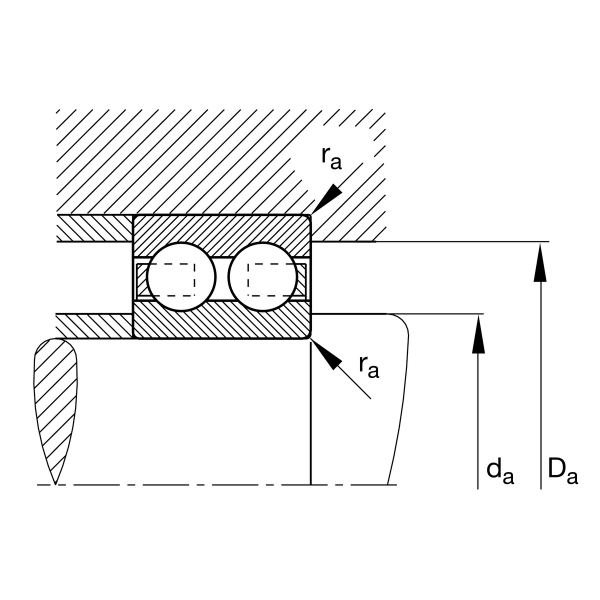

Mounting dimensions
da min
22.6 mm
Minimum diameter shaft shoulder
da min
41.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
