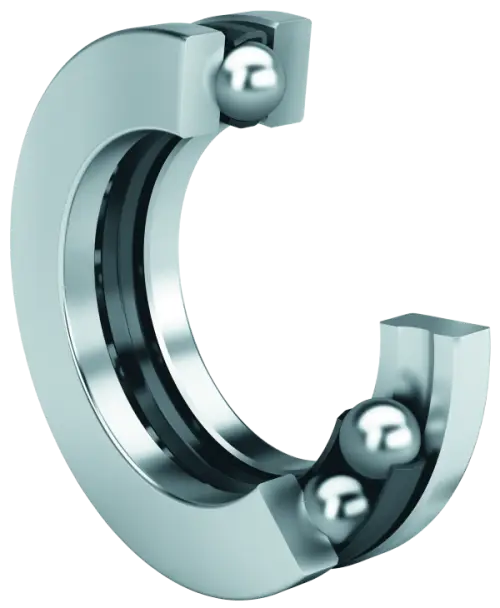

FAG 51217
Axial Ball Bearings
Axial deep groove ball bearing 512, single direction, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
85 mm
Inner diameter shaft washer
D
125 mm
Outer diameter housing washer
T
31 mm
Height
Ca
98,000 N
Basic dynamic load rating, axial
C0a
250,000 N
Basic static load rating, axial
Cua
11,200 N
Fatigue load limit, axial
CG
3,250 1/min
Limiting speed
nϑr
3,850 1/min
Reference speed
≈m
1.223 kg
Weight
Mounting dimensions
da min
109 mm
Minimum diameter shaft shoulder
da min
101 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum filled radius
