FAG 591/800-MP
Axial Ball Bearings
Axial deep groove ball bearing 591..-MP, double direction, with spherical housing washer, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

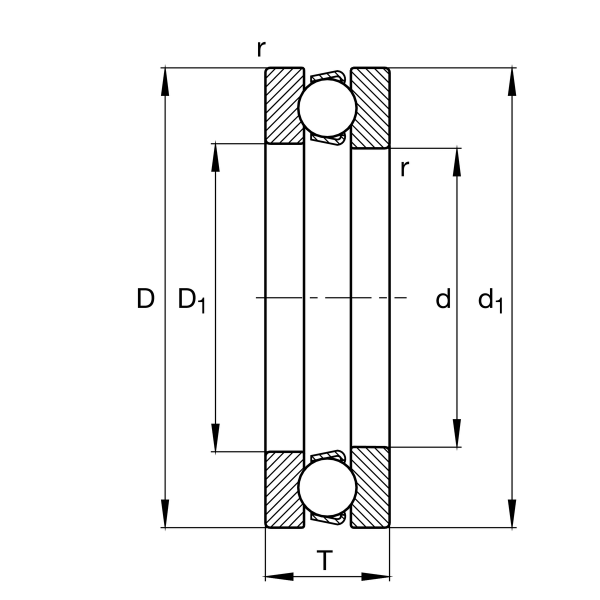

Main Dimensions & Performance Data
d
800 mm
Inner diameter shaft washer
D
950 mm
Outer diameter housing washer
T
90 mm
Height
Ca
750,000 N
Basic dynamic load rating, axial
C0a
5,900,000 N
Basic static load rating, axial
Cua
91,000 N
Fatigue load limit, axial
CG
540 1/min
Limiting speed
nϑr
390 1/min
Reference speed
≈m
1 g
Weight

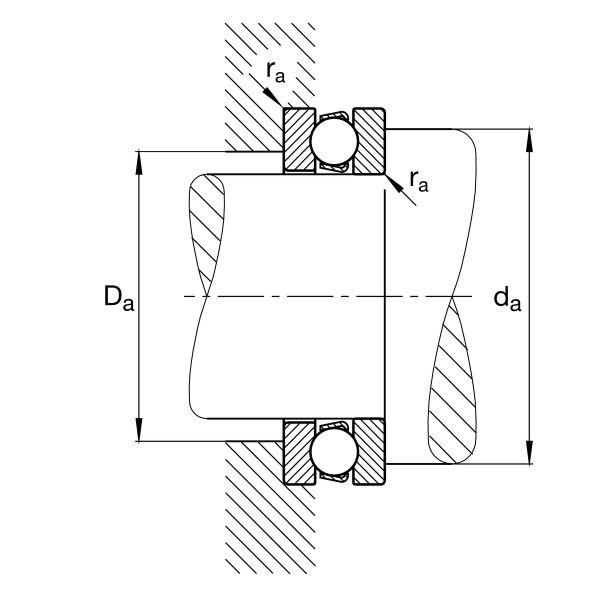

Mounting dimensions
da min
890 mm
Minimum diameter shaft shoulder
da min
860 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum filled radius
