FAG 51324-MP

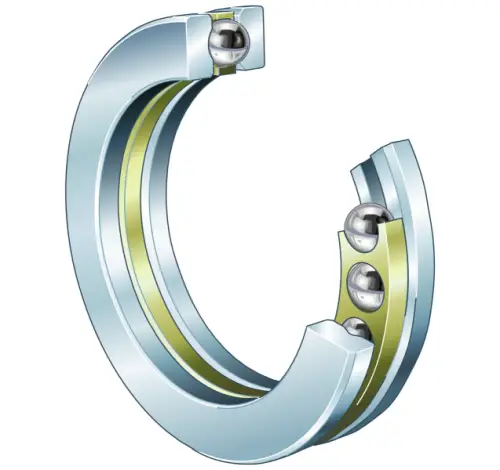

Axial deep groove ball bearing 513..-MP, single direction, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
120 mm
Inner diameter shaft washer
D
210 mm
Outer diameter housing washer
T
70 mm
Height
Ca
325,000 N
Basic dynamic load rating, axial
C0a
910,000 N
Basic static load rating, axial
Cua
32,500 N
Fatigue load limit, axial
CG
1,610 1/min
Limiting speed
nϑr
3,200 1/min
Reference speed
≈m
10.414 kg
Weight
Mounting dimensions
da min
174 mm
Minimum diameter shaft shoulder
da min
156 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum filled radius
