FAG 52228

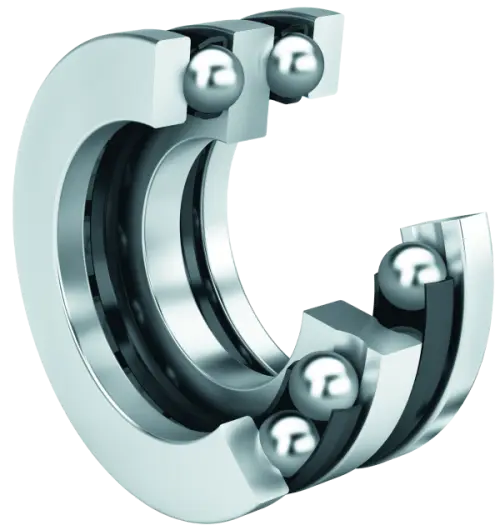

Axial deep groove ball bearing 522, double direction, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

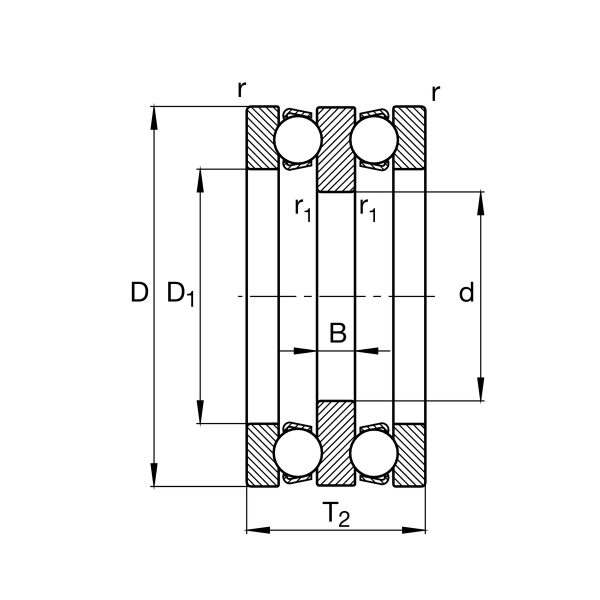

Main Dimensions & Performance Data
d
120 mm
Inner diameter shaft washer
D
200 mm
Outer diameter housing washer
T2
81 mm
Height
Ca
191,000 N
Basic dynamic load rating, axial
C0a
570,000 N
Basic static load rating, axial
Cua
19,800 N
Fatigue load limit, axial
CG
2,110 1/min
Limiting speed
nϑr
2,750 1/min
Reference speed
≈m
7.97 kg
Weight

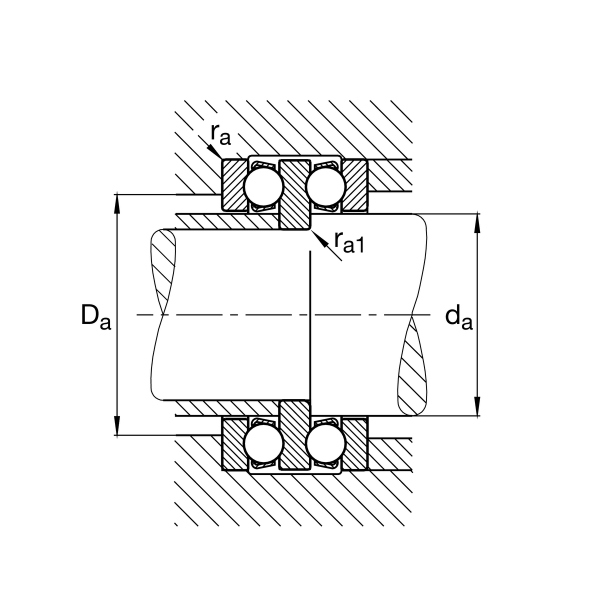

Mounting dimensions
da max
140 mm
Maximum diameter shaft shoulder
da min
164 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum filled radius
ra1 max
1 mm
Maximum filled radius
