FAG 52328-MP

(BRAND)：FAG

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

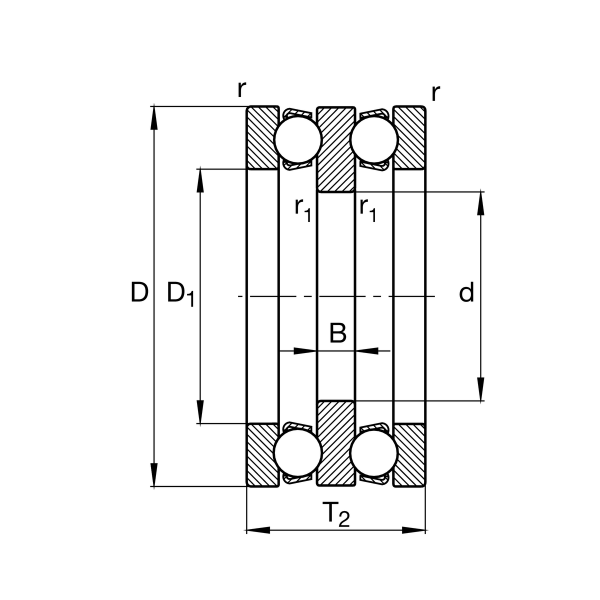

Detailed data of

d 120 mm Inner diameter shaft washer

D 240 mm Outer diameter housing washer

T2 140 mm Height

C_a 385,000 N Basic dynamic load rating, axial

C_0a 1,240,000 N Basic static load rating, axial

C_ua 41,000 N Fatigue load limit, axial

C_G 1,360 1/min Limiting speed

nϑr 2,550 1/min Reference speed

≈m 28.3 kg Weight

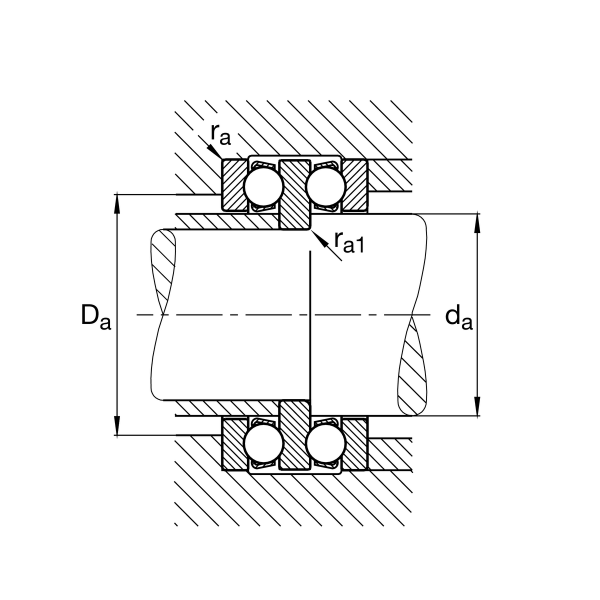

d_{a max} 140 mm Maximum diameter shaft shoulder

d_{a min} 180 mm Maximum diameter of housing shoulder

r_{a max} 2.1 mm Maximum filled radius

r_{a1 max} 1 mm Maximum filled radius
