FAG 53215
Axial Ball Bearings

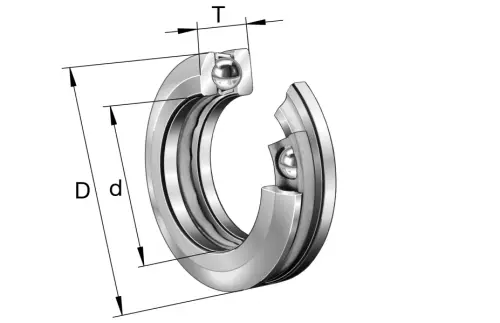

Axial deep groove ball bearing 532, single direction, with spherical housing washer, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

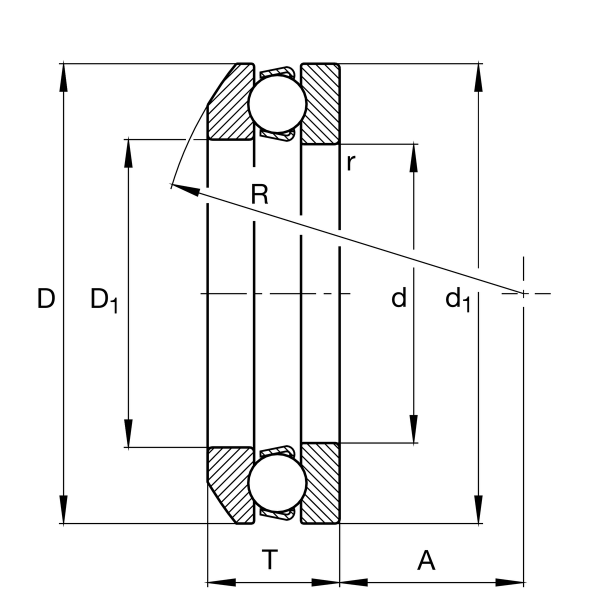

Main Dimensions & Performance Data
d
75 mm
Inner diameter shaft washer
D
110 mm
Outer diameter housing washer
T
28.3 mm
Height
Ca
67,000 N
Basic dynamic load rating, axial
C0a
169,000 N
Basic static load rating, axial
Cua
7,700 N
Fatigue load limit, axial
CG
3,950 1/min
Limiting speed
nϑr
4,300 1/min
Reference speed
≈m
0.812 kg
Weight

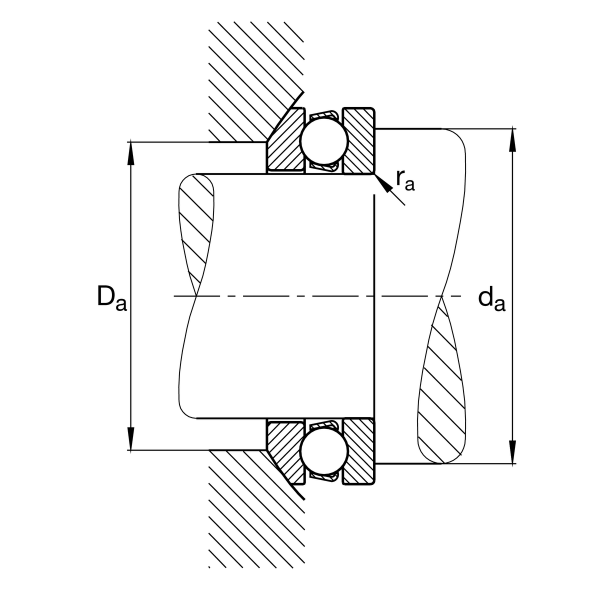

Mounting dimensions
da min
96 mm
Minimum diameter shaft shoulder
da min
92 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum filled radius
