FAG 54232-MP

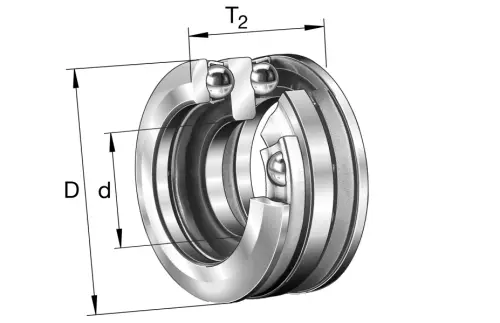

Axial deep groove ball bearing 542..-MP, double direction, with spherical housing washer, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

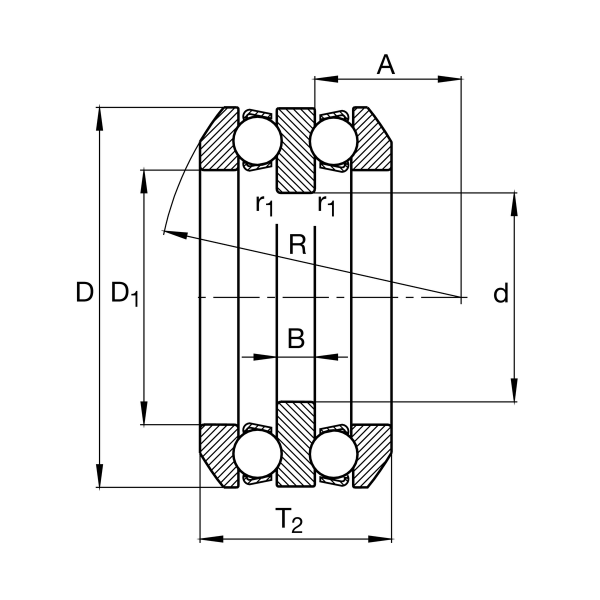

Main Dimensions & Performance Data
d
140 mm
Inner diameter shaft washer
D
225 mm
Outer diameter housing washer
T2
97.4 mm
Height
Ca
240,000 N
Basic dynamic load rating, axial
C0a
770,000 N
Basic static load rating, axial
Cua
25,500 N
Fatigue load limit, axial
CG
1,900 1/min
Limiting speed
nϑr
2,400 1/min
Reference speed
≈m
11.19 kg
Weight

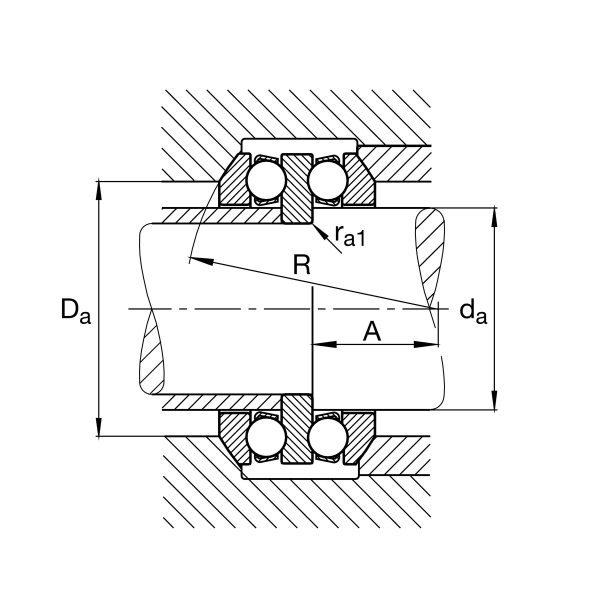

Mounting dimensions
da max
160 mm
Maximum diameter shaft shoulder
da min
190 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum filled radius
ra1 max
1 mm
Maximum filled radius
