FAG 6004-2RSR

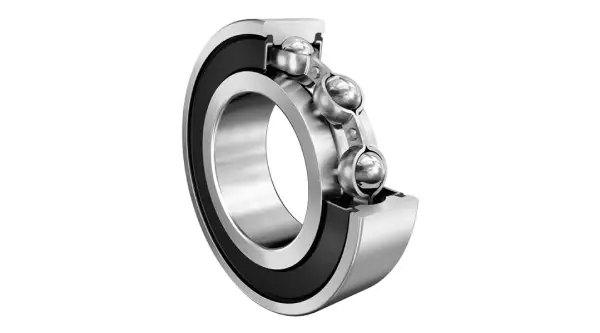

Deep groove ball bearing 60..-2RSR, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

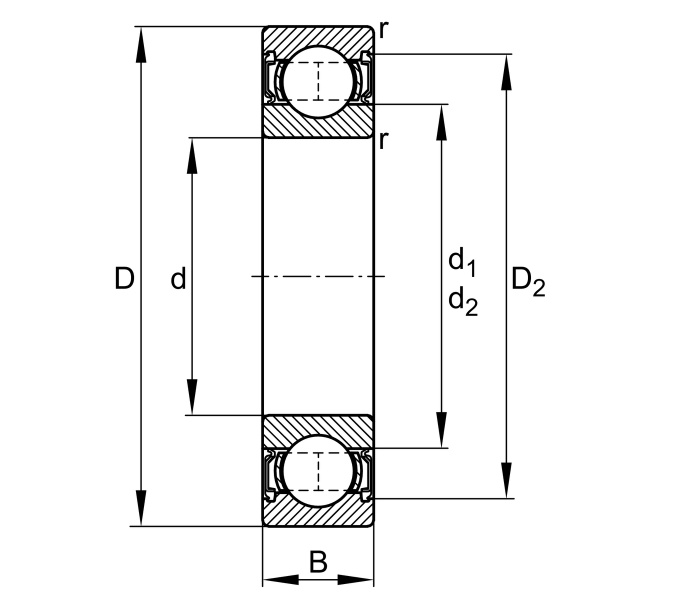

Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
42 mm
Outside diameter
B
12 mm
Width
Cr
10,000 N
Basic dynamic load rating, radial
C0r
5,000 N
Basic static load rating, radial
Cur
290 N
Fatigue load limit, radial
CG
10,100 1/min
Limiting speed
≈m
0.067 kg
Weight
Mounting dimensions
da min
23.2 mm
Minimum diameter shaft shoulder
da min
38.8 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius
