FAG 61803-2RSR-C3>N
Deep groove ball bearing 618..-2RSR, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

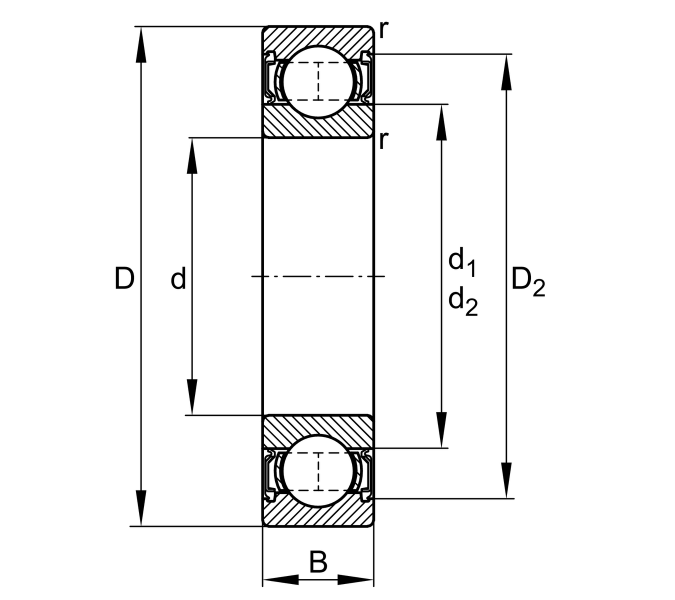

Main Dimensions & Performance Data
d
17 mm
Bore diameter
D
26 mm
Outside diameter
B
5 mm
Width
Cr
2,230 N
Basic dynamic load rating, radial
C0r
1,460 N
Basic static load rating, radial
Cur
86 N
Fatigue load limit, radial
CG
13,500 1/min
Limiting speed
≈m
0.087 kg
Weight
Mounting dimensions
da min
19 mm
Minimum diameter shaft shoulder
da min
24 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
