FAG 61818-RSR-Y

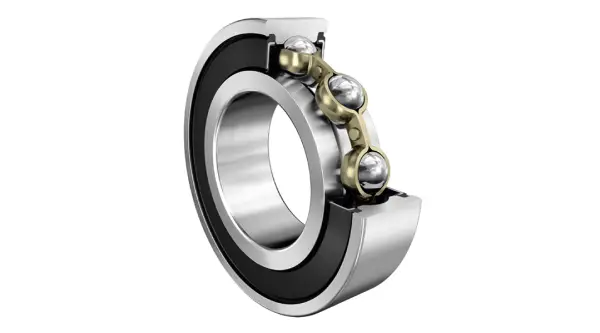

Deep groove ball bearing 618..-RSR-Y, single row, seal, brass sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

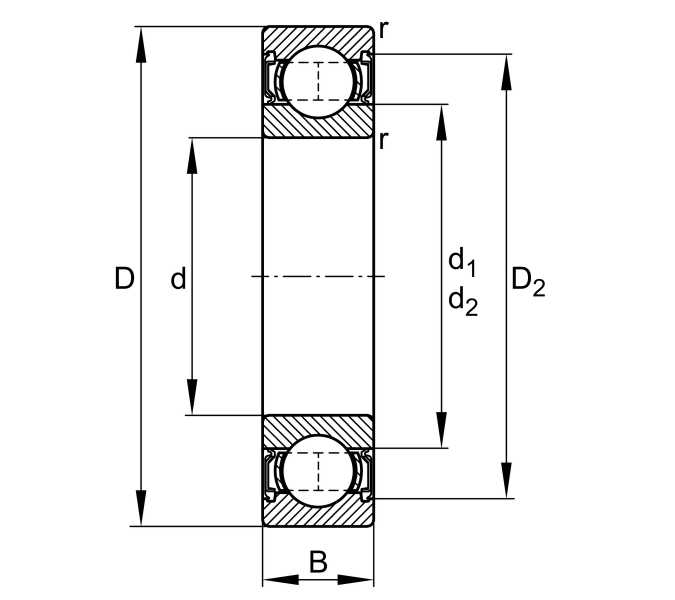

Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
115 mm
Outside diameter
B
13 mm
Width
Cr
20,700 N
Basic dynamic load rating, radial
C0r
20,600 N
Basic static load rating, radial
Cur
1,200 N
Fatigue load limit, radial
CG
2,700 1/min
Limiting speed
≈m
0.261 kg
Weight
Mounting dimensions
da min
94.6 mm
Minimum diameter shaft shoulder
da min
110.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
