FAG 61901-2RSR-L038>N

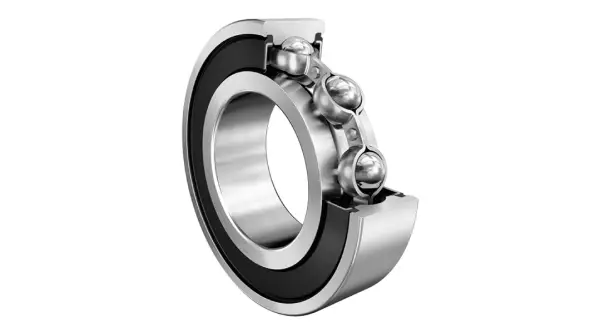

Deep groove ball bearing 619..-2RSR, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

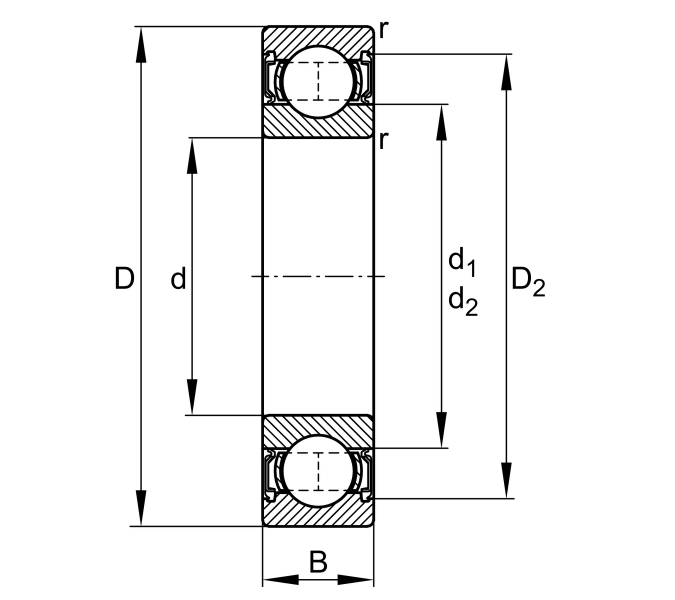

Main Dimensions & Performance Data
d
12 mm
Bore diameter
D
24 mm
Outside diameter
B
6 mm
Width
Cr
2,890 N
Basic dynamic load rating, radial
C0r
1,460 N
Basic static load rating, radial
Cur
91 N
Fatigue load limit, radial
CG
16,700 1/min
Limiting speed
≈m
0.01 kg
Weight

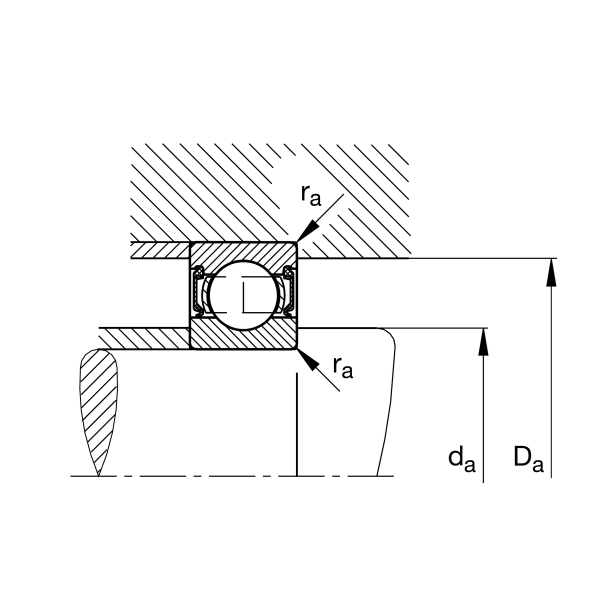

Mounting dimensions
da min
14 mm
Minimum diameter shaft shoulder
da min
22 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
