FAG 6204

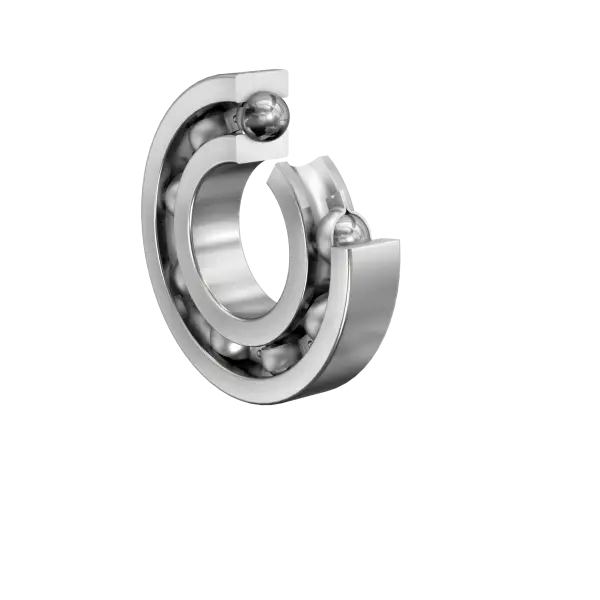

Deep groove ball bearing 62, single row, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
47 mm
Outside diameter
B
14 mm
Width
Cr
13,600 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
Cur
455 N
Fatigue load limit, radial
CG
22,100 1/min
Limiting speed
nϑr
16,300 1/min
Reference speed
≈m
103.66 g
Weight
Mounting dimensions
da min
25.6 mm
Minimum diameter shaft shoulder
da min
41.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
