FAG 6210-C>V

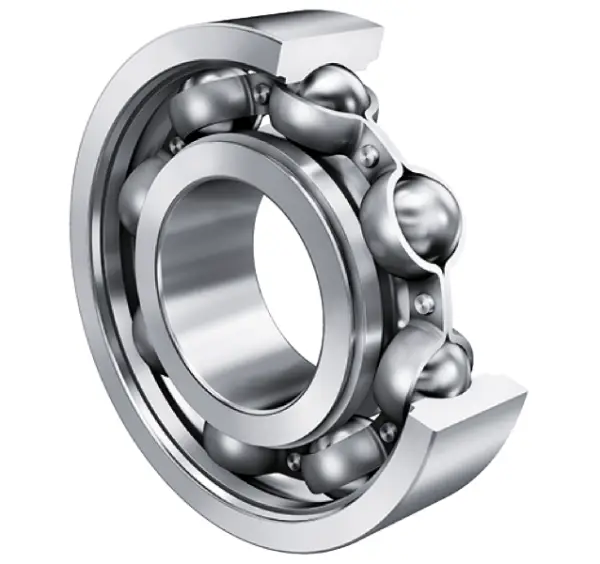

Deep groove ball bearing 62..-C, single row, Generation C, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

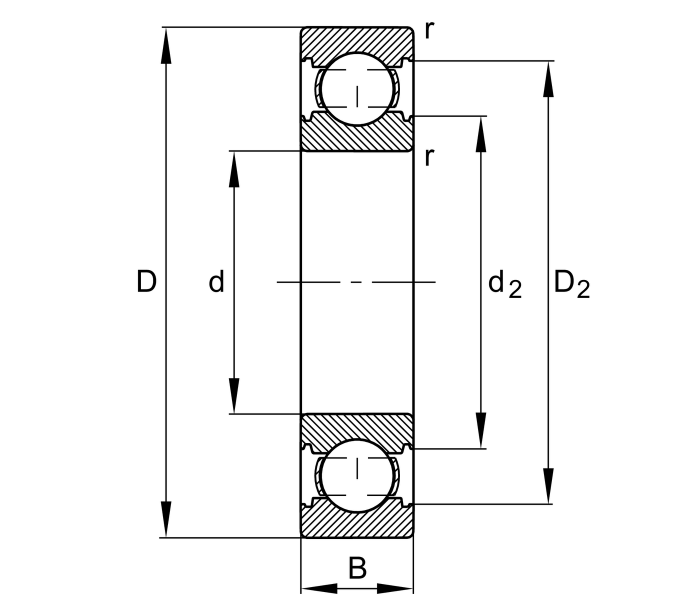

Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
90 mm
Outside diameter
B
20 mm
Width
Cr
40,000 N
Basic dynamic load rating, radial
C0r
23,200 N
Basic static load rating, radial
Cur
1,610 N
Fatigue load limit, radial
CG
11,700 1/min
Limiting speed
nϑr
9,200 1/min
Reference speed
≈m
0.421 kg
Weight

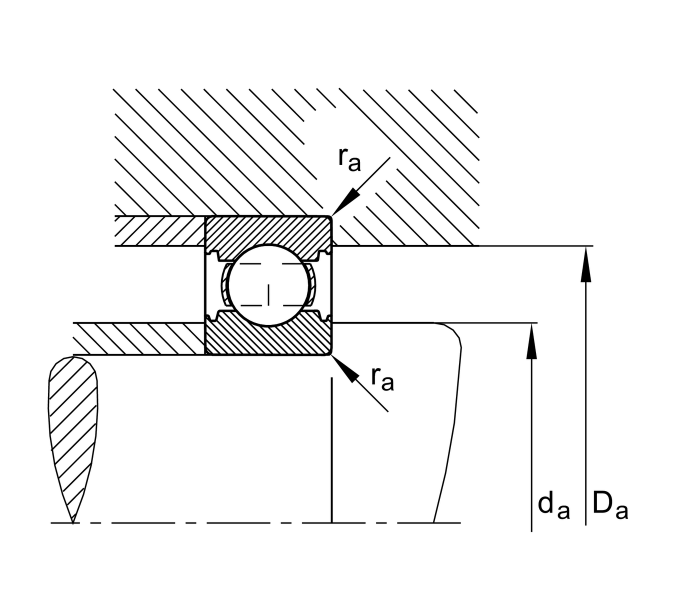

Mounting dimensions
da min
57 mm
Minimum diameter shaft shoulder
da min
83 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
