FAG 6218-C2
Deep groove ball bearing 62, single row, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

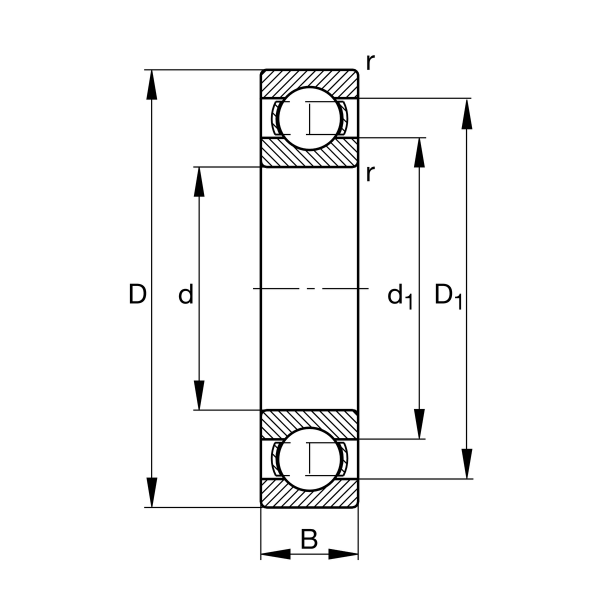

Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
160 mm
Outside diameter
B
30 mm
Width
Cr
102,000 N
Basic dynamic load rating, radial
C0r
74,000 N
Basic static load rating, radial
Cur
4,500 N
Fatigue load limit, radial
CG
6,300 1/min
Limiting speed
nϑr
5,100 1/min
Reference speed
≈m
2.189 kg
Weight
Mounting dimensions
da min
101 mm
Minimum diameter shaft shoulder
da min
149 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum fillet radius
