FAG 6301

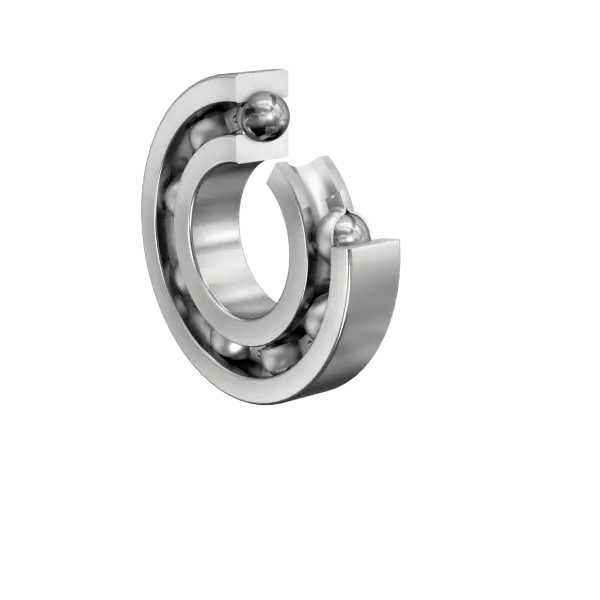

Deep groove ball bearing 63, single row, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
12 mm
Bore diameter
D
37 mm
Outside diameter
B
12 mm
Width
Cr
10,300 N
Basic dynamic load rating, radial
C0r
4,200 N
Basic static load rating, radial
Cur
290 N
Fatigue load limit, radial
CG
28,500 1/min
Limiting speed
nϑr
20,000 1/min
Reference speed
≈m
61 g
Weight
Mounting dimensions
da min
17.6 mm
Minimum diameter shaft shoulder
da min
31.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
