FAG 6301-2RSR-C3

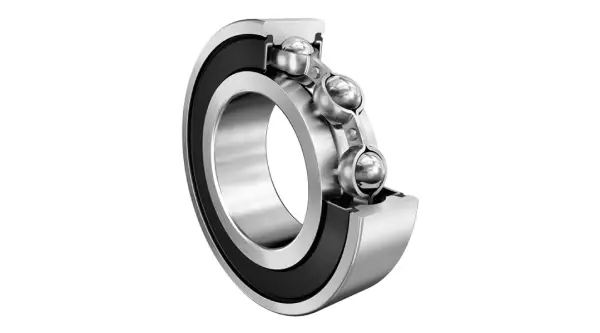

Deep groove ball bearing 63..-2RSR, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
12 mm
Bore diameter
D
37 mm
Outside diameter
B
12 mm
Width
Cr
10,300 N
Basic dynamic load rating, radial
C0r
4,200 N
Basic static load rating, radial
Cur
290 N
Fatigue load limit, radial
CG
13,700 1/min
Limiting speed
≈m
59.8 g
Weight

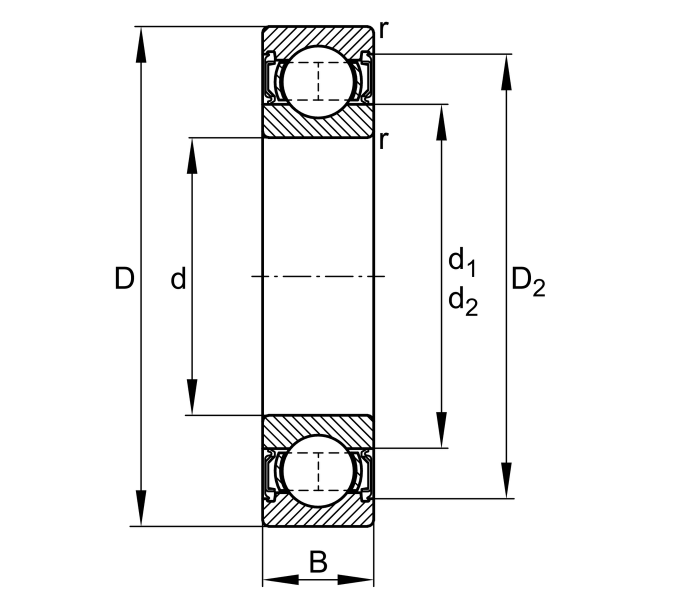

Mounting dimensions
da min
17.6 mm
Minimum diameter shaft shoulder
da min
31.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
