FAG 6302-2Z

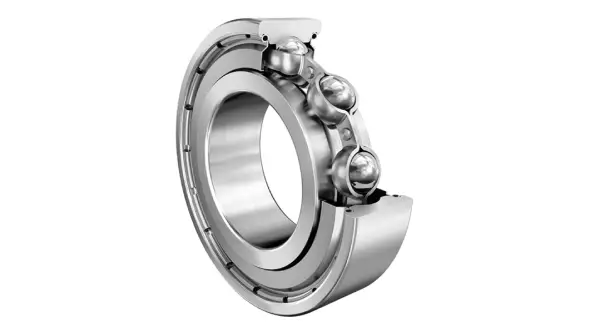

Deep groove ball bearing 63..-2Z, single row, shields, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

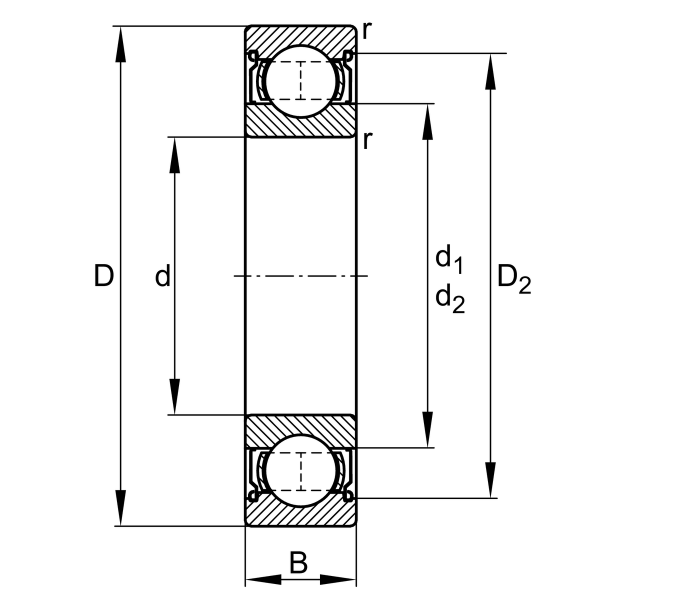

Main Dimensions & Performance Data
d
15 mm
Bore diameter
D
42 mm
Outside diameter
B
13 mm
Width
Cr
12,000 N
Basic dynamic load rating, radial
C0r
5,300 N
Basic static load rating, radial
Cur
360 N
Fatigue load limit, radial
CG
21,400 1/min
Limiting speed
nϑr
17,500 1/min
Reference speed
≈m
85.5 g
Weight

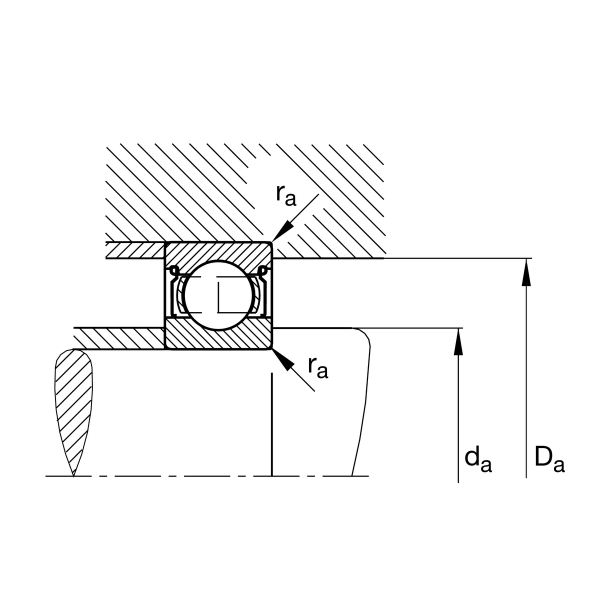

Mounting dimensions
da min
20.6 mm
Minimum diameter shaft shoulder
da min
36.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
