FAG 6303-2Z-L207

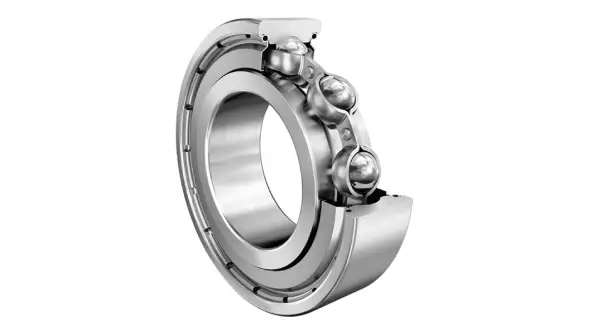

Deep groove ball bearing 63..-2Z, single row, shields, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
17 mm
Bore diameter
D
47 mm
Outside diameter
B
14 mm
Width
Cr
14,400 N
Basic dynamic load rating, radial
C0r
6,500 N
Basic static load rating, radial
Cur
435 N
Fatigue load limit, radial
CG
18,900 1/min
Limiting speed
nϑr
15,900 1/min
Reference speed
≈m
113.1 g
Weight
Mounting dimensions
da min
22.6 mm
Minimum diameter shaft shoulder
da min
41.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
