FAG 6303-C-2HRS-L038>V

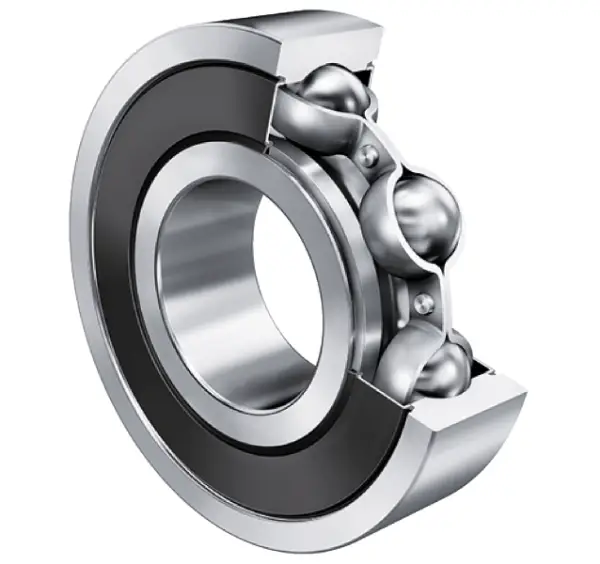

Deep groove ball bearing 63..-C-2HRS, single row, Generation C, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

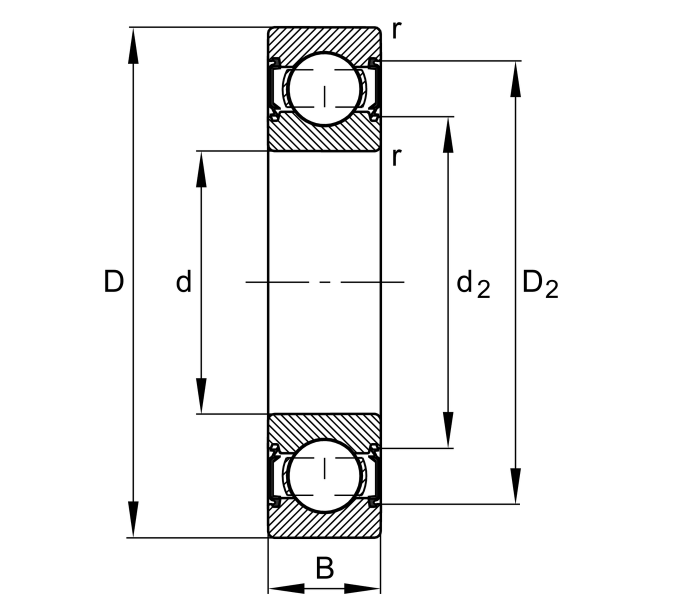

Main Dimensions & Performance Data
d
17 mm
Bore diameter
D
47 mm
Outside diameter
B
14 mm
Width
Cr
15,800 N
Basic dynamic load rating, radial
C0r
6,500 N
Basic static load rating, radial
Cur
450 N
Fatigue load limit, radial
CG
15,700 1/min
Limiting speed
≈m
0.113 kg
Weight

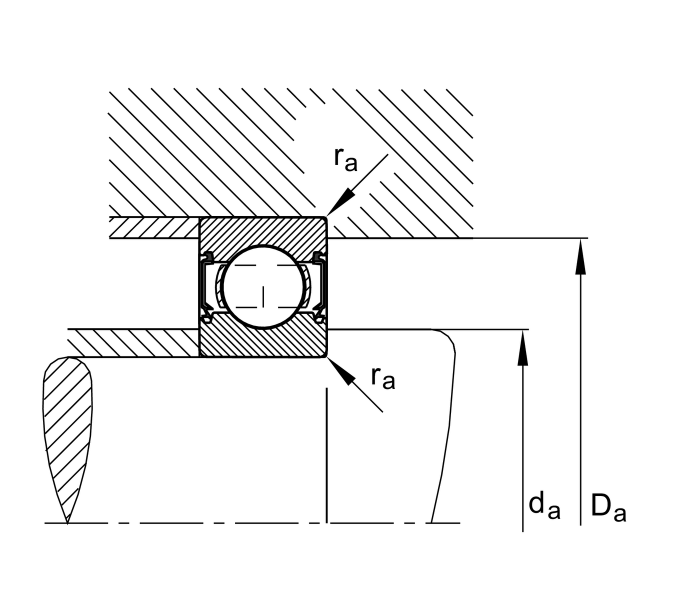

Mounting dimensions
da min
22.6 mm
Minimum diameter shaft shoulder
da min
41.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
