FAG 6304-C-2HRS-L038-C3>V
Deep groove ball bearing 63..-C-2HRS, single row, Generation C, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

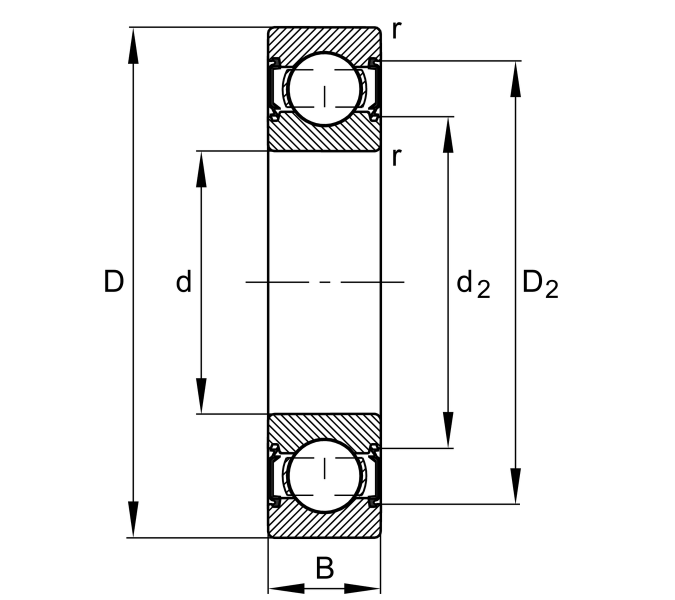

Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
52 mm
Outside diameter
B
15 mm
Width
Cr
18,500 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
Cur
540 N
Fatigue load limit, radial
CG
14,000 1/min
Limiting speed
≈m
0.148 kg
Weight
Mounting dimensions
da min
27 mm
Minimum diameter shaft shoulder
da min
45 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
