FAG 6305-C-2Z>V

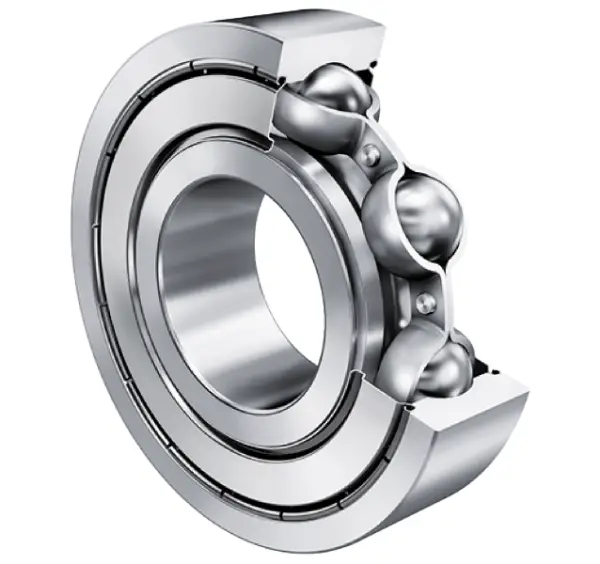

Deep groove ball bearing 63..-C-2Z, single row, Generation C, shields, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

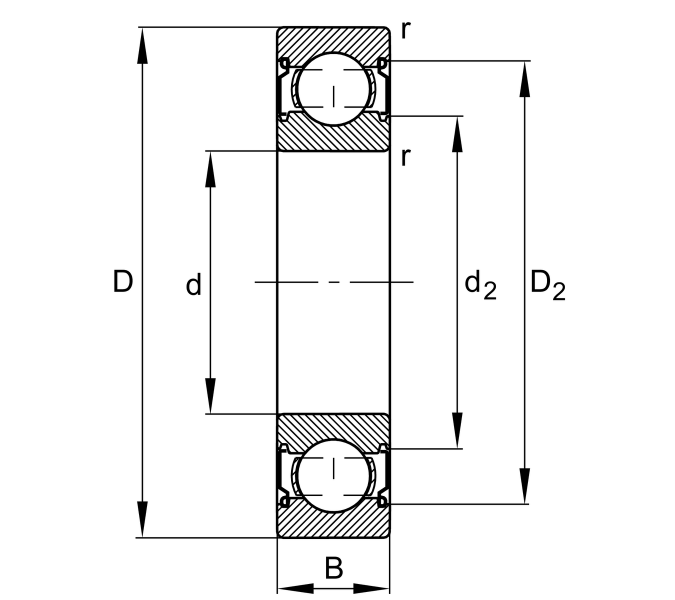

Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
62 mm
Outside diameter
B
17 mm
Width
Cr
26,500 N
Basic dynamic load rating, radial
C0r
11,500 N
Basic static load rating, radial
Cur
790 N
Fatigue load limit, radial
CG
15,100 1/min
Limiting speed
nϑr
13,500 1/min
Reference speed
≈m
0.225 kg
Weight
Mounting dimensions
da min
32 mm
Minimum diameter shaft shoulder
da min
55 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
