FAG 6310-C-2Z-C3

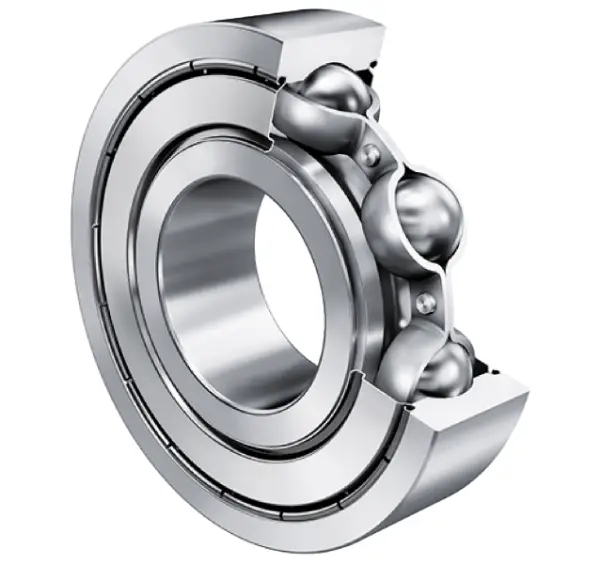

Deep groove ball bearing 63..-C-2Z, single row, Generation C, shields, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

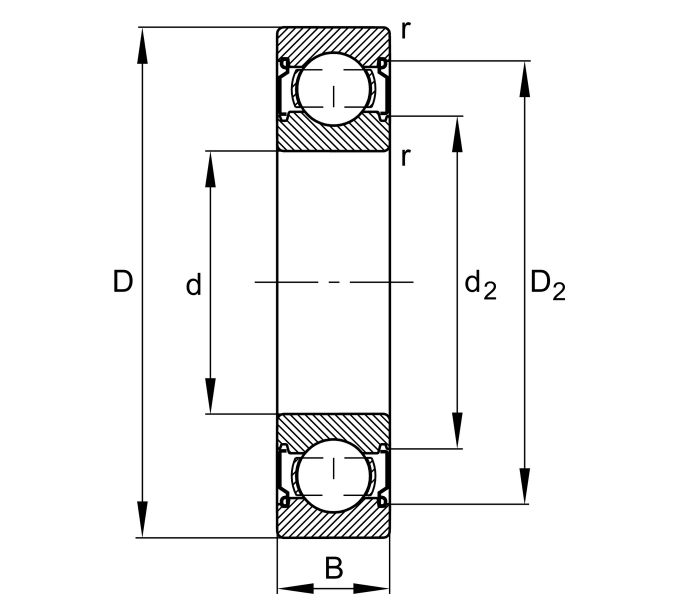

Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
110 mm
Outside diameter
B
27 mm
Width
Cr
68,000 N
Basic dynamic load rating, radial
C0r
38,000 N
Basic static load rating, radial
Cur
2,650 N
Fatigue load limit, radial
CG
8,000 1/min
Limiting speed
nϑr
8,400 1/min
Reference speed
≈m
1.077 kg
Weight

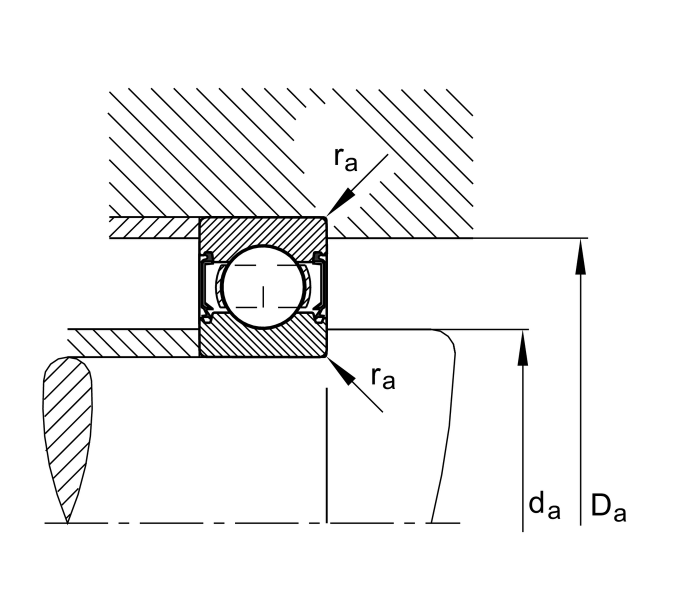

Mounting dimensions
da min
61 mm
Minimum diameter shaft shoulder
da min
99 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum fillet radius
