FAG 634-2RSR>N

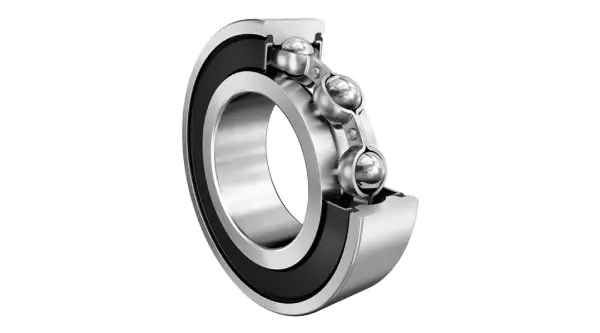

Deep groove ball bearing 63..-2RSR, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

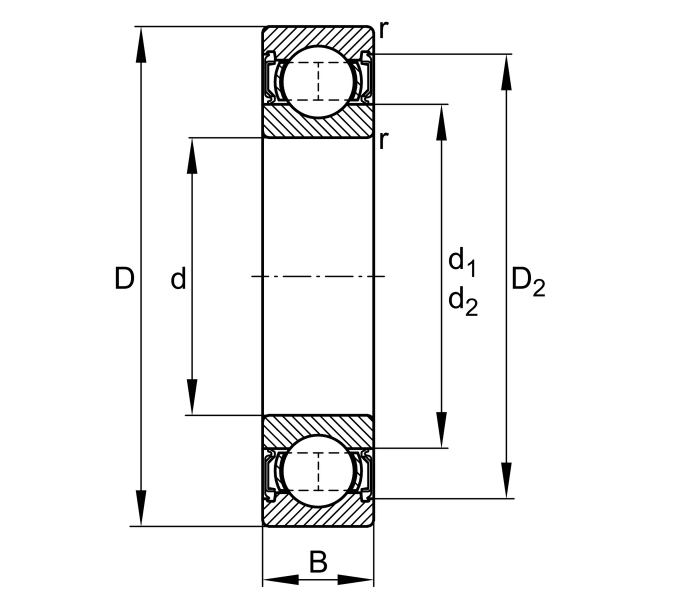

Main Dimensions & Performance Data
d
4 mm
Bore diameter
D
16 mm
Outside diameter
B
5 mm
Width
Cr
1,340 N
Basic dynamic load rating, radial
C0r
517 N
Basic static load rating, radial
Cur
14.1 N
Fatigue load limit, radial
CG
32,500 1/min
Limiting speed
≈m
5.44 g
Weight
Mounting dimensions
da min
6.4 mm
Minimum diameter shaft shoulder
da min
13.6 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
