FAG HC6002-C-2HRS-TVH-L207-C3>V

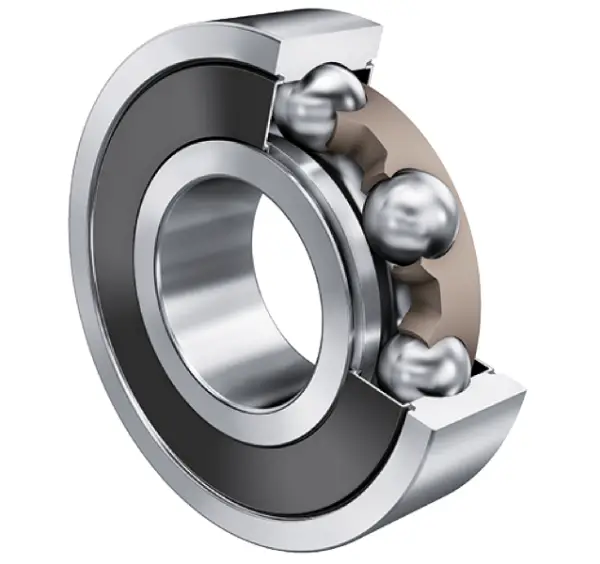

Deep groove ball bearing HC60..-C-2HRS-TVH, Hybrid bearing, single row, Generation C, seals, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

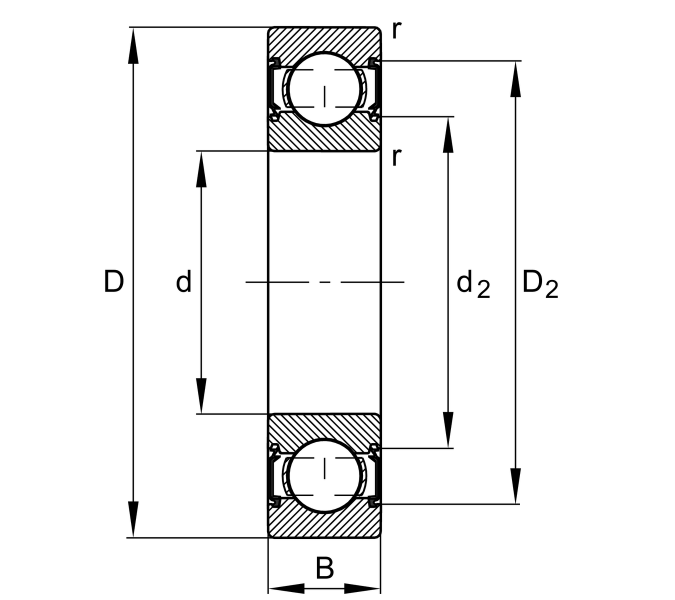

Main Dimensions & Performance Data
d
15 mm
Bore diameter
D
32 mm
Outside diameter
B
9 mm
Width
Cr
6,300 N
Basic dynamic load rating, radial
C0r
2,700 N
Basic static load rating, radial
Cur
139 N
Fatigue load limit, radial
CG
20,300 1/min
Limiting speed
≈m
0.025 kg
Weight

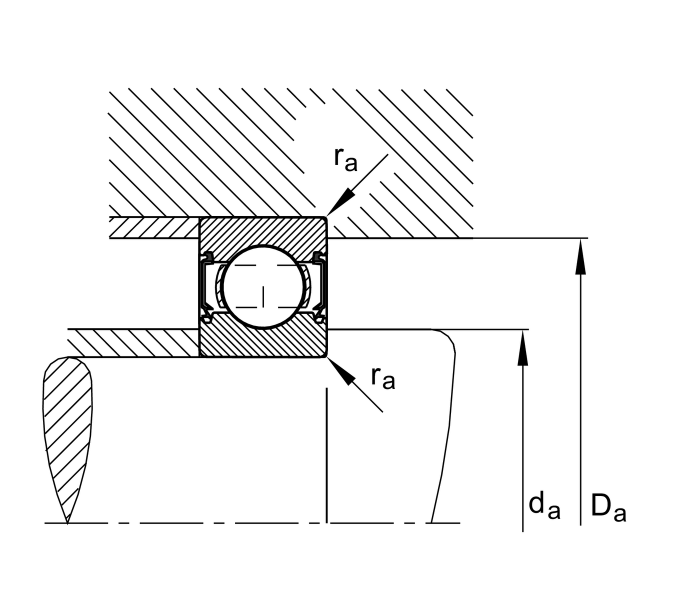

Mounting dimensions
da min
17 mm
Minimum diameter shaft shoulder
da min
30 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
