FAG HC6004-C-2HRS-TVH-L207-C3>V

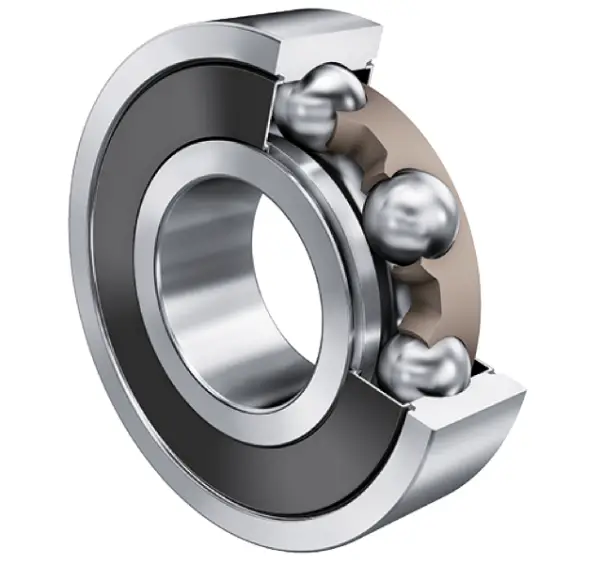

Deep groove ball bearing HC60..-C-2HRS-TVH, Hybrid bearing, single row, Generation C, seals, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

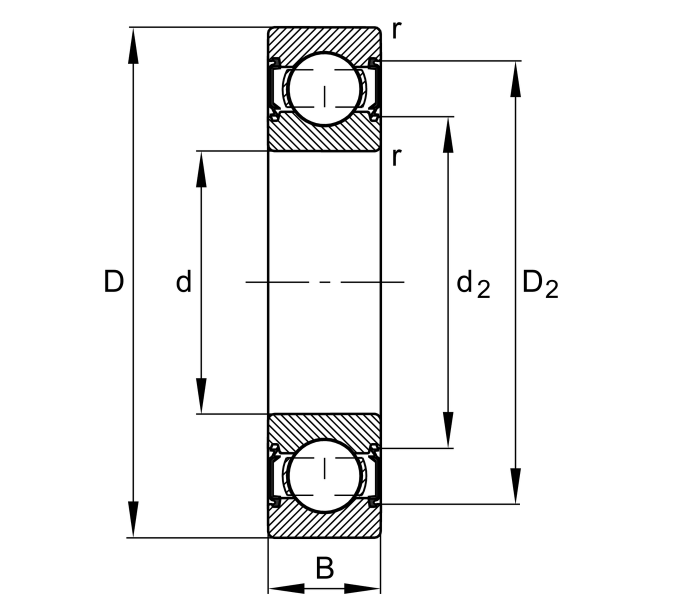

Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
42 mm
Outside diameter
B
12 mm
Width
Cr
10,600 N
Basic dynamic load rating, radial
C0r
4,800 N
Basic static load rating, radial
Cur
247 N
Fatigue load limit, radial
CG
15,300 1/min
Limiting speed
≈m
0.058 kg
Weight

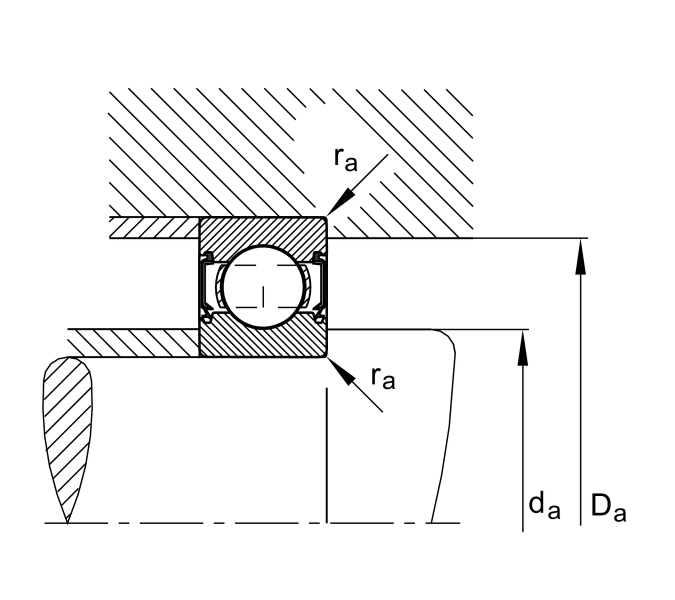

Mounting dimensions
da min
23.2 mm
Minimum diameter shaft shoulder
da min
38.8 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius
